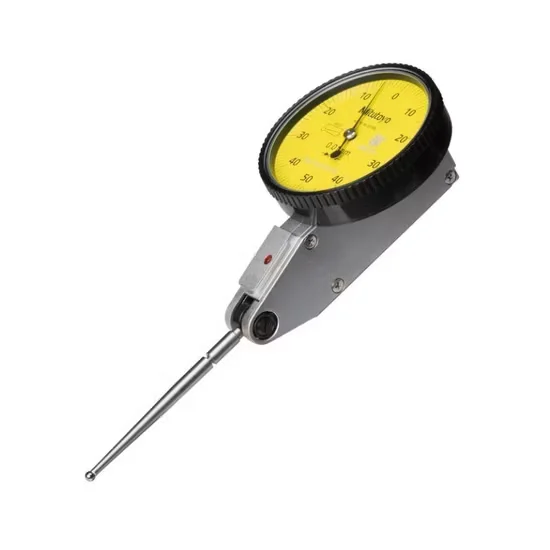

Mitutoyo 513-415-10E Horizontal Dial Test Indicator Genuine [WARN] draft identifier mismatch

Official App Verification — Scan the packaging QR code to instantly confirm the genuine Japan origin of your measuring instrument.

Technical Specifications

The 10E suffix designation requires manufacturer catalog confirmation for specific regional or packaging variations.

Application Suitability

Why Spindle Bearings Fail Before the Mitutoyo 513-415-10E Dial Test Indicator Detects the Runout

Micro-vibrations mask precision loss until catastrophic bearing failure occurs.

During my early metrology failure analysis days in Vietnam, a machine tool spindle developed severe abnormal noises. While checking the assembly with a Mitutoyo 513-415-10E dial test indicator, the needle jumped wildly across the dial. The root cause was a procurement error where 7014 C P4A angular contact bearings were mistakenly replaced with P0 grade equivalents, completely destroying the required running accuracy. [NEED_CITE: precision mismatch in high-speed spindle assemblies]

Matching the Instrument to Machining Environments

Achieving micron-level reliability demands an instrument that withstands harsh shop-floor conditions while maintaining zero-point stability. The Mitutoyo 513-415-10E dial test indicator provides the necessary mechanical stability for repetitive MRO inspections and fixture alignments. Our unified sourcing solutions ensure these critical measuring tools arrive alongside your bulk bearing orders, eliminating fragmented supply chains and reducing procurement overhead for maintenance departments.

Overcoming Shop-Floor Measurement Challenges

Inspecting deep recesses or narrow grooves requires a compact probe that resists magnetic interference and physical deflection. Standard indicators often suffer from needle lag or sticking when exposed to the intense magnetic fields of electromagnetic chucks or heavy machinery. Furthermore, continuous contact with hardened steel surfaces rapidly degrades standard stylus tips, altering the contact geometry and introducing measurement drift. Proper calibration cycles and careful stylus selection are vital to maintain bidirectional deviation accuracy across varying temperatures. [NEED_CITE: stylus wear effects on dial indicator repeatability]

Decoding the Dial and Accuracy Specs

The 0.01 mm accuracy ensures that microscopic runout variations are captured without signal damping or mechanical hysteresis. A 0-50-0 dial reading format allows technicians to instantly visualize bidirectional deviations from the zero point, which is critical when measuring shaft concentricity or bearing seat alignment. Unlike unidirectional scales, this balanced layout prevents calculation errors during dynamic alignment tasks where the probe direction reverses. The horizontal dial orientation significantly improves visibility when the instrument is mounted on a magnetic base above the workpiece. Japan origin manufacturing guarantees the internal gear train maintains long-term calibration stability even under continuous use.

The Hidden Costs of Counterfeit Measuring Tools

Using unverified or counterfeit dial indicators introduces invisible measurement errors that compound through the entire assembly and maintenance process. A slight deviation in reading can lead to improper bearing preload settings, resulting in premature failure or catastrophic damage to the spindle housing and adjacent components. Such metrology failures routinely void equipment warranties and cause extensive unplanned downtime across the production line. Relying on fully traceable instruments prevents these cascading quality defects and protects your capital equipment investments. [NEED_CITE: metrology equipment traceability per ISO standards]

Securing Genuine Instruments for Your MRO Inventory

Sourcing genuine measuring tools is just as critical as procuring authentic precision bearings for your machinery. We provide complete batch traceability documentation for every instrument, ensuring it meets original factory specifications and performance claims. Our flexible MOQ allows you to add a single replacement indicator to a full container consolidation shipment of industrial bearings and MRO spares. We also offer cross-brand equivalent model consultation if you need to upgrade or standardize your existing measurement setup across multiple facilities. Global shipping consolidation ensures your tools and spare parts arrive together, fully inspected and ready for immediate deployment.

Documentation & Authenticity

• Certificate of Conformity confirming Japan origin and 0.01 mm accuracy specs.
• Original factory batch traceability linking the serial number to production records.
• Official app QR verification for instant authenticity validation upon delivery.
• Dimensional inspection report verifying the 0-50-0 dial reading balance.

Storage, Handling & Mounting

• Store the indicator in its original case to protect the 0.01 mm precision gear train from dust.
• Avoid leaving the tool near electromagnetic chucks to prevent magnetic interference with the needle.
• Use clean cotton gloves when handling the stylus to prevent skin oils from affecting contact friction.
• Retract the measuring spindle fully when not in use to preserve the internal spring tension.

Requesting Technical Verification

Share your specific inspection requirements, such as target runout tolerances and mounting space constraints, so our engineering team can verify suitability. Provide the OEM equipment model numbers to ensure the indicator reach and stylus type match your exact application. We will review your operating environment to recommend appropriate accessories or alternative dial configurations.

Frequently Asked Questions

Q: How do I verify the authenticity of this specific dial test indicator? A: You can verify the instrument by scanning the QR code on the packaging using the official manufacturer app. This confirms the Japan origin and links the serial number to the original production batch. We also provide a Certificate of Conformity and complete traceability documentation with every shipment to ensure you receive genuine measuring tools.

Q: What does the 0-50-0 dial reading format indicate for my measurements? A: This balanced scale allows you to measure bidirectional deviations from a central zero point without resetting the dial. It is particularly useful for checking shaft runout or bore concentricity, where the needle moves both clockwise and counterclockwise. This layout minimizes calculation errors during dynamic alignment tasks in machine tool maintenance.

Q: Can this indicator be used in environments with strong magnetic fields? A: While the instrument is designed for general shop-floor use, strong magnetic fields from electromagnetic chucks can affect the needle movement. The internal components and stylus have weak magnetic properties to reduce interference, but it is always recommended to use non-magnetic mounting fixtures or maintain a safe distance from active magnetic sources during precision checks.

Q: How should I maintain the accuracy of the 0.01 mm resolution over time? A: Always store the indicator in its protective case and retract the spindle when not in use to preserve spring tension. Avoid dropping the tool or applying excessive force to the stylus, as this can damage the internal gear train. Periodic calibration against certified gauge blocks ensures the 0.01 mm accuracy remains reliable for critical MRO inspections.
