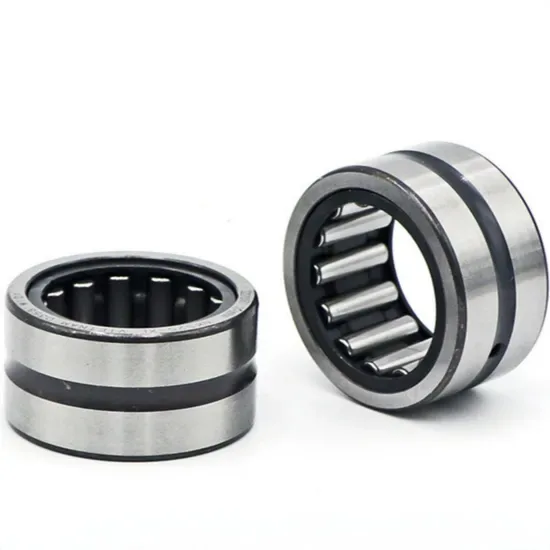

INA NKS45 Needle Roller Bearing 45x60x22mm Genuine

Authorized Channel Traceability — Every INA NKS45 needle roller bearing we supply ships with batch-linked distributor documentation, letting your receiving team verify origin before it hits the shelf.

Technical Specifications

Application Suitability

Why a Needle Without Rings Changes Everything on the Shop Floor

The shaft and housing bore become your raceways — any shortcut in their finish or hardness shows up as premature needle skidding.

Most field failures I traced back in Dongguan's equipment repair shops started the same way: a technician swapped an INA NKS45 needle roller bearing into a gearbox, assumed the shaft was ready, and ignored the surface hardness requirement. Needle bearings without inner or outer rings transfer every contact stress directly to the mating surfaces. If the shaft is below 58 HRC or the housing bore drifts out of roundness tolerance, the needles develop flat spots within weeks. Counterfeit batches make this worse — soft carbon steel needles deform under load, shred the cage, and score the shaft beyond rework [NEED_CITE: needle roller bearing failure modes per ISO 15243]. The INA NKS45 needle roller bearing demands discipline at installation that cushioned deep-groove balls simply do not.

How the NKS45 Fits Compact Radial Applications

Space-constrained assemblies — gearboxes, universal joints, rocker arms — leave no room for an inner ring. The INA NKS45 needle roller bearing rides directly on a hardened, ground shaft journal, collapsing the radial envelope to just 60 mm outside diameter while carrying substantial radial load through a full complement of rollers guided by a steel cage. We once matched this designation for a packaging line in Foshan that needed to shrink bearing housings without sacrificing load capacity. The cross-reference check confirmed the Fw/D/C envelope aligned with their existing shaft geometry, avoiding a costly housing re-bore.

Load Spectrum, Speed Envelope, and the Lubrication Gap

Radial loads on needle rollers concentrate along a thin line contact, which means shock loads and frequent direction reversals accelerate surface fatigue far faster than in ball bearings. Operating temperature matters doubly here: without seals, the INA NKS45 needle roller bearing depends entirely on the housing's external sealing and the chosen grease or oil to survive contamination. In high-vibration equipment like vibrating screens or crusher conveyors, grease purge intervals shorten and misalignment risk climbs. Cold pressing a needle cage into a housing with poor bore finish invites cage distortion — the needles bind, generate heat, and fail before the first scheduled maintenance window [NEED_CITE: rolling bearing lubrication and contamination sensitivity per ISO 281].

Reading the NKS Designation Beyond the Base Number

The "NK" family covers machined needle roller bearings; the "S" in NKS indicates a heavy-series cross-section compared to the standard NK, giving the INA NKS45 a wider 22 mm body and higher radial load capacity in the same 45 mm bore envelope. Running without inner or outer rings means the shaft journal must be ground to at least Ra 0.4 µm and hardened to 58–62 HRC — the needles are unforgiving on soft or rough mating surfaces. The steel cage keeps roller spacing consistent under load, preventing needle-to-needle contact that would generate localized heat and cage collapse. Open-type construction places lubrication responsibility on the system designer: oil mist, grease packing, or oil bath must be chosen based on speed and contamination exposure, not assumed from a catalog table.

What a Wrong Cage or Fake Needle Costs After Installation

A genuine INA NKS45 needle roller bearing with correct needle crown profiling distributes load evenly across the full contact line. Counterfeit needles often have flat ends or inconsistent hardness, creating edge stress that spalls the shaft journal and tears the cage pockets. Once cage damage starts, needles skew, skid, and generate metallic debris that migrates through the oil system into neighboring components. The repair bill jumps from a bearing swap to a full gearbox rebuild — unplanned downtime, lost production, and warranty disputes that drag on for months [NEED_CITE: counterfeit bearing impact on equipment reliability and downstream damage].

Why Procurement Engineers Keep Coming Back for This Part

Every INA NKS45 needle roller bearing we quote traces to authorized Schaeffler distributor stock, with batch numbers you can verify through INA's official channels. Our cross-reference database checks more than the base designation — we confirm cage type, needle crown geometry, and dimensional envelope so substitute brands match on load capacity, not just outer dimensions. When your importing country requires origin documentation, we prepare country-of-origin certificates and HS code paperwork before the shipment leaves. Dimensional inspection reports accompany each batch so your QC team can verify bore, OD, and width tolerance before mounting. For maintenance teams replacing bearings by OEM equipment number, we confirm interchange compatibility including clearance and hardness requirements of the mating shaft.

Documentation & Authenticity

• Supplier Certificate of Conformity linked to the INA NKS45 batch number for full distributor-chain traceability
• Dimensional inspection report confirming Fw 45 mm, D 60 mm, and C 22 mm within tolerance before dispatch
• Country-of-origin certificate and HS code classification ready for customs clearance at destination port
• Material verification confirming bearing steel construction with hardness data on request
• QR code or batch lookup pathway via INA's official verification tools for end-user authenticity checks

Storage, Handling & Mounting

• Keep the INA NKS45 in its sealed original packaging until the moment of installation — open-type needle bearings have no seal to block moisture ingress during shelf storage
• Store flat in a climate-controlled area below 60% relative humidity to prevent corrosion on the exposed needle rollers and cage
• Verify shaft journal hardness (58–62 HRC) and surface finish before pressing the cage-and-needle assembly onto the shaft — soft shafts destroy needles within the first run-in cycle
• Use clean, lint-free gloves when handling; fingerprint acids on bearing steel accelerate pitting in the high-contact-stress needle-to-shaft interface
• Apply the specified grease or oil immediately after mounting, as the open design provides zero corrosion protection once the factory preservative oil evaporates

Request a Quotation with Full Technical Review

Share your operating parameters — radial load, shaft speed, ambient temperature, and lubrication method — so we can confirm the INA NKS45 needle roller bearing suits the application or recommend a sealed variant if contamination is a concern. If you are replacing a bearing by OEM equipment number, send us the machine plate details and we will verify cross-reference compatibility including shaft hardness and housing bore requirements. Ask for the documentation package and country-of-origin confirmation with your inquiry so we can prepare everything before the order is placed.

Frequently Asked Questions

Q: How do I verify the authenticity of an INA NKS45 needle roller bearing after receiving it? A: Check the batch number on the packaging against INA's official verification channels. We supply a Certificate of Conformity tied to the authorized distributor chain, and the packaging includes traceable markings that should match the documentation provided with your shipment.

Q: What is the difference between NKS, NK, and RNA designations? A: NK refers to the standard-series machined needle roller bearing without an inner ring. NKS is the heavy-series variant with a larger cross-section — the INA NKS45 has a 60 mm OD and 22 mm width compared to the narrower NK equivalent. RNA designations typically indicate needle bearings with an outer ring but without an inner ring. Always confirm Fw/D/C dimensions rather than assuming interchangeability from the base number alone.

Q: Can I substitute another brand for the INA NKS45? A: Cross-brand substitution is possible, but the replacement must match on bore diameter, outside diameter, width, cage type, and needle crown profile — not just the base number. We run a full cross-reference check across SKF, NSK, FAG, NTN, and other brands to confirm dimensional and performance equivalence before recommending a substitute.

Q: What lubrication is recommended for this open-type needle roller bearing? A: Lubrication depends on your operating speed, temperature, and contamination level. Oil bath or circulating oil suits higher-speed applications, while grease packing works for moderate speeds with effective external sealing. Because the INA NKS45 has no integrated seals, the housing must provide adequate contamination exclusion regardless of lubricant choice.

Q: What is the typical lead time for bulk orders? A: Lead time depends on current distributor stock levels and order quantity. We confirm availability and estimated dispatch dates at the quotation stage, and provide tracking documentation once the order ships.

Confirm Your INA NKS45 Requirements Today Send us your application parameters or OEM equipment number, and we will return a technical review with verified cross-reference options, documentation package details, and a clear lead time estimate.
