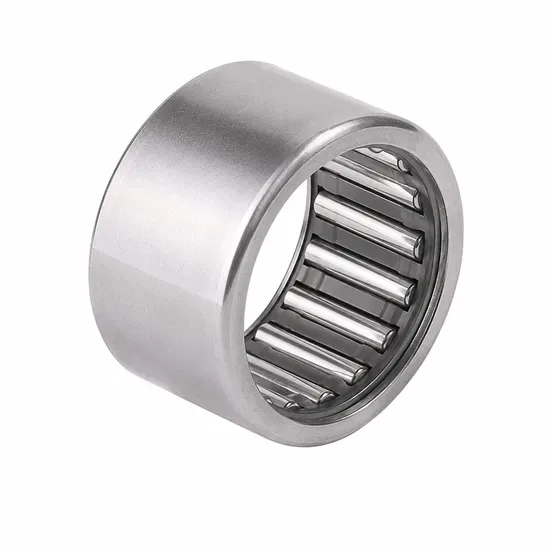

INA HK2516 Drawn Cup Needle Roller Bearing P6 GCr15

Traceable Sourcing Channels — Every INA HK2516 drawn cup needle roller bearing we supply ships with batch-level documentation linking back to authorized Schaeffler distribution, so your receiving team can verify origin before the crate hits the warehouse floor.

Technical Specifications

Application Suitability

What Happens When the HK Cross-Reference Ignores the Cage

A base-number match on an INA HK2516 drawn cup needle roller bearing means almost nothing if the cage design is wrong for the vibration profile.

I have watched procurement teams line up three quotes, all showing HK2516, all looking identical on the spreadsheet. Then the equipment goes into the field — a vibrating screen or a crusher eccentric — and within a few months the stamped steel cage on one of those "identical" bearings fractures. Needles scatter through the housing, score the shaft journal, and what should have been a scheduled swap becomes a full teardown. The root cause is almost always a supplier who quoted a cage variant that does not match the original equipment specification, or worse, a counterfeit with a soft outer cup that deforms under press-fit and crushes internal clearance. [NEED_CITE: drawn cup needle roller bearing failure modes per ISO 15243]

Matching the INA HK2516 to High-Radial-Load Compact Envelopes

The drawn cup design of the INA HK2516 gives you a high radial load rating inside a very thin cross-section, which matters when the housing bore is already machined and there is no room for a conventional outer ring. On gear reducer intermediate shafts and hydraulic pivot points, this bearing carries pure radial loads while occupying less axial and radial space than a comparable spherical or cylindrical roller alternative. We routinely cross-check the housing bore tolerance against the INA catalog's recommended press-fit range so the outer cup does not deform during installation and rob the needle set of its operating clearance.

Vibration, Contamination, and the Open-End Reality

An open-end drawn cup bearing like the HK2516 has no integral seal. That is an advantage in gearboxes where oil splash lubrication must reach the needle set freely, but it becomes a liability in dusty environments — cement plants, aggregate crushers, field-deployed agricultural gear. Without external lip seals or labyrinth guards on the housing, particulate ingress accelerates needle and raceway wear rapidly. Temperature swings also matter: if the shaft expands more than the housing during heat-up, residual clearance shrinks. On equipment that cycles between ambient and elevated operating temperatures, we review the fit tolerances to confirm that thermal growth will not close the internal gap to zero. [NEED_CITE: effect of housing press-fit on drawn cup bearing internal clearance]

Why GCr15 and P6 Precision Matter Here

The GCr15 chrome steel used in the INA HK2516 needle rollers and outer cup provides high through-hardness and fatigue resistance, which is the baseline for any bearing that sees continuous radial loading. P6 precision class means tighter bore and OD tolerances than the default P0 grade — this translates directly to a more predictable press-fit and less risk of outer cup ovalization during assembly. In practice, when the housing bore is machined to the correct tolerance band, a P6 drawn cup seats cleanly and the needle-to-cage assembly runs with uniform load distribution across all rollers. That uniformity is what prevents the early spalling you see when one or two needles carry disproportionate load.

The Hidden Expense of a Suffix Shortcut

Ordering by base number alone is the single most common way buyers expose themselves to field failures on this bearing type. A counterfeit HK2516 with a soft outer cup will pass a casual visual check but collapse during press-fitting, permanently eliminating internal clearance. Similarly, a legitimate bearing sourced from a batch intended for a different cage specification can show up with needles that do not match the cage pocket geometry, causing cage fatigue under vibration. ISO 281 life calculations assume correct geometry and clearance — once those are compromised, calculated L10 life becomes meaningless and unplanned downtime replaces planned maintenance. [NEED_CITE: impact of counterfeit bearings on equipment reliability in heavy industry]

How We Keep the INA HK2516 Traceable from Inquiry to Installation

We source this bearing through authorized Schaeffler distributor channels, which means every shipment carries documentation that traces back to the production batch. Our cross-reference database does not stop at matching the base designation — we verify cage type, precision class, and dimensional tolerances before confirming interchangeability with alternative brands. For buyers importing into regions where customs authorities demand clear country-of-origin paperwork, we include the necessary certificates with the shipment. When a new application involves unusual load profiles or temperature ranges, we review the selection against the equipment parameters before the order ships, catching mismatches before they reach the field.

Documentation & Authenticity

• Supplier Certificate of Conformity referencing the INA HK2516 batch and lot number for receiving-side traceability
• Material certificate confirming GCr15 chrome steel composition on outer cup and needle rollers
• Dimensional inspection report covering bore, OD, and width against P6 tolerance bands before dispatch
• Country-of-origin documentation prepared for import customs clearance in your destination market
• QR code verification pathway through the official Schaeffler app for on-site authenticity confirmation

Storage, Handling & Mounting

• Keep the INA HK2516 in its original plastic tube and carton until the moment of press-fit installation — the drawn cup outer ring is thin-walled and easily nicked by contact with other metal components in open storage
• Handle with clean lint-free gloves; fingerprints on the exposed needle set of this open-end bearing introduce acidic moisture that initiates corrosion before the first rotation
• Use a mandrel or sleeve tool for press-fitting into the housing bore — never hammer directly on the outer cup, as the thin drawn wall will dent and deform the needle raceway
• Verify housing bore diameter and roundness with a bore gauge before mounting; the P6 precision of this bearing delivers correct fit only when the housing stays within the recommended tolerance band
• Fill the housing with the specified lubricant before closing the cover, since this open-end design depends entirely on the external lubrication system reaching the needle set

Request a Technical Quotation

Share your equipment model number or application parameters — load, speed, temperature, housing bore tolerance — and we will confirm whether the INA HK2516 is the correct specification or recommend an alternative suffix variant. We can also provide a complete documentation package preview including origin certificates before you commit to the order.

Frequently Asked Questions

Q: How do I verify that an INA HK2516 drawn cup needle roller bearing is genuine? A: Scan the QR code on the packaging using the official Schaeffler OriginCheck app. A genuine bearing will return batch information consistent with the accompanying Certificate of Conformity. If the QR redirects to a generic website or returns inconsistent data, treat the product as suspect and contact the supplier for verification.

Q: What is the difference between a drawn cup and a caged needle roller bearing for heavy machinery? A: Drawn cup bearings like the HK2516 have a thin stamped outer ring that is press-fit directly into the housing, saving radial space and weight. Caged needle roller bearings use a machined or thick-walled outer ring and are typically used when the housing bore cannot hold tight tolerances or when the bearing must be removable. The choice depends on housing design and maintenance strategy.

Q: Can I cross-reference the INA HK2516 to another brand by base number alone? A: Base number matching is a starting point, not a finish line. Different manufacturers may use different cage designs, needle profiles, or precision grades under the same or similar designations. A reliable cross-reference must also align cage material, clearance class, and dimensional tolerances — otherwise the substitute may fail prematurely under load.

Q: What lubrication is recommended for the open-end HK series? A: Open-end drawn cup bearings rely on the housing lubrication system. For oil-lubricated gearboxes, the existing splash or forced-feed system is usually sufficient. For grease-lubricated applications, a lithium-complex or polyurea grease with appropriate NLGI grade should be applied to the housing cavity during assembly, with relubrication intervals set by operating temperature and contamination level.

Q: Why does P6 precision matter for a drawn cup needle roller bearing? A: P6 tolerances ensure that the bore and OD of the bearing stay within tighter bands than standard P0. For a press-fit drawn cup, this means more predictable installation force and less risk of outer cup deformation, which directly protects the internal needle-to-raceway geometry and maintains uniform load sharing.

Get a Verified INA HK2516 Quotation Send us your application parameters or OEM equipment number, and we will respond with a technical recommendation, lead time, and the full documentation package your receiving team requires.
