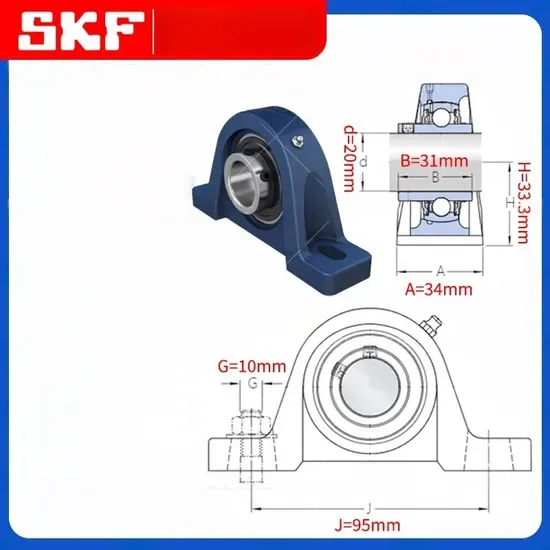

UCPX05 Pillow Block Bearing Wholesale Supplier Low Price

Authorized Sourcing — every UCPX05 pillow block we ship carries full batch traceability from the authorized distributor network, matched to Certificate of Conformity documentation for import clearance.

Technical Specifications

Note: The "X" and "F" designations appearing in some catalog variants remain unverified against a single manufacturer's master catalog and should be confirmed before finalizing interchange equivalency.

Application Suitability

What a Seal Suffix Mismatch Costs on a Conveyor Line

Matching the base number without verifying the seal type is one of the most expensive shortcuts in bearing procurement.

Years ago, a Brazilian aggregate plant reported seized UCPX05-class pillow blocks on their main conveyor within weeks of installation. The shaft was scored, the grease cavity had turned black with particulate, and the entire line was down. When I pulled the failed units apart, the culprit was clear: standard stamped steel shields had been supplied where triple-lip contact seals were specified for that dusty, washdown-prone environment. The previous supplier had pulled a unit by its base designation and ignored everything after it. [NEED_CITE: bearing contamination as leading cause of premature failure in bulk handling]

A UCPX05 pillow block bearing low price is meaningless if the seal configuration does not match the contamination level at the installation point. Buyers focused solely on unit cost often discover the true expense during unplanned downtime.

How the Spherical Raceway Solves Misalignment on Conveyors

In conveyor and agricultural installations, shaft deflection and frame distortion are constant realities. The spherical raceway inside the UCPX05 insert bearing allows the inner ring to self-align relative to the outer ring, compensating for angular misalignment that would otherwise edge-load the balls and trigger early fatigue spalling. This is particularly relevant where mounting surfaces are welded rather than machined flat, or where thermal expansion across long shaft spans introduces deflection under load. Cross-brand interchange for this type must account not just for bore size and housing bolt spacing, but for the internal raceway geometry — a detail frequently lost when buyers rely on base-number-only lookup tools. We routinely verify these dimensional and geometric parameters before confirming any UCPX05 pillow block bearing low price quotation.

Load, Speed, and Contamination: What the Operating Envelope Demands

The typical UCPX05 installation involves moderate radial loads combined with continuous rotation at speeds where grease shear stability becomes a limiting factor. [NEED_CITE: grease service life reduction at elevated operating temperatures in pillow block applications] Where the unit operates near heat sources — ovens, kilns, or hot material conveyors — thermal expansion of the shaft changes the internal clearance condition, making the original factory clearance class critical. In washdown or high-humidity zones, corrosion-resistant features protect the raceway surfaces from pitting that acts as a stress concentrator under rolling contact. Seal selection here is not optional: contact-type seals increase friction slightly but prevent the ingress of fine abrasive dust that destroys open or lightly shielded designs within days. Installation practice also matters — cold-press mounting on the shaft with force applied to the inner ring prevents brinelling the raceway, while hammering on the outer ring transfers impact damage directly to the rolling elements.

Spherical Raceway Geometry and Single-Row Load Distribution

The spherical outer ring raceway is the defining feature of this insert bearing. It permits angular displacement between shaft and housing, but this comes with a trade-off: the contact patch between balls and raceway shifts under load, meaning the single-row configuration must carry the full radial load on one plane. This is acceptable for the moderate-duty cycles typical of conveyor and MRO applications, but it rules out combined heavy radial and axial loading without supplementary thrust support. The corrosion-resistant treatment on exposed surfaces extends service intervals in humid climates, while the high-speed and high-temperature ratings indicate that the grease fill and cage material have been selected to withstand thermal breakdown beyond standard operating envelopes. Together, these specifications point to a unit designed for continuous industrial duty rather than intermittent light use.

The Hidden Cost of Wrong-Spec Pillow Blocks

Correct specification paired with verified sourcing delivers predictable L10 life; wrong clearance, incorrect seal suffixes, or counterfeit inserts deliver the opposite. Under ISO 15243, failure modes such as smearing, abrasive wear, and corrosion pitting are directly traceable to specification mismatches rather than material defects. [NEED_CITE: ISO 15243 rolling bearing failure classification categories] A unit with soft inner rings — a hallmark of counterfeit production using uncontrolled heat treatment — will show premature wear on the shaft seating surface long before the raceway itself fails. Warranty claims are voided when post-failure metallurgy reveals non-conforming steel grade, leaving the buyer absorbing both the replacement cost and the production loss. The UCPX05 pillow block bearing low price appeal evaporates quickly against these downstream costs.

What Verified Sourcing Delivers for This Product Class

Every shipment leaves with a Certificate of Conformity tied to the specific batch, not a generic blanket statement. We source through authorized distributor channels, meaning the chain of custody is documented from manufacturer to your dock. For cross-reference requests, our interchange database aligns housing dimensions, bore tolerance, seal type, and clearance class simultaneously — not just the base number — so substitutions hold up in the field. Engineering selection support is available when the application involves unusual temperature, contamination, or load conditions that fall outside standard catalog ratings. Country-of-origin documentation accompanies each order for import clearance, and material certificates confirm the bearing steel grade meets GCr15 or 100Cr6 equivalents. [NEED_CITE: bearing steel grade equivalency between GCr15 and 100Cr6 standards]

Documentation & Authenticity

• Supplier Certificate of Conformity listing batch number, quantity, and UCPX05 designation, enabling full traceability back to the production lot.
• Material certificate confirming bearing steel grade meets GCr15 or 100Cr6 specification for the insert bearing inner and outer rings.
• Third-party dimensional inspection report covering bore diameter, housing bolt-hole spacing, and shaft seating tolerance before dispatch.
• Country-of-origin documentation prepared for customs clearance, matching the UCPX05 pillow block bearing low price commercial invoice.
• HS code classification guidance for pillow block units to prevent import delays at destination ports.

Storage, Handling & Mounting

• Retain the original export-standard carton and pallet wrapping until installation; early exposure in humid port-side storage risks surface corrosion on the spherical outer ring before the unit reaches the mounting site.
• Store UCPX05 units horizontally on a flat surface — vertical stacking of pillow blocks can distort the housing base casting over time, affecting bolt alignment during installation.
• Apply force only to the inner ring during shaft mounting; driving the bearing through the outer ring or housing transfers impact loads into the spherical raceway and compromises the self-aligning capability.
• For high-speed conveyor applications, do not wash out the factory grease fill; the corrosion-resistant and high-temperature grease specification is matched to the seal and cage design at the factory.
• Verify shaft diameter tolerance and surface finish before pressing the 25 mm bore insert onto the shaft — undersized shafts cause inner ring creep, while out-of-round shafts distort the raceway and accelerate fatigue.

Request a Specification-Matched Quotation

Share your application parameters — load, speed, ambient temperature, contamination level, and any OEM equipment number — so we can confirm the correct seal suffix, clearance class, and housing fit for your UCPX05 installation. If you are evaluating a cross-brand substitution, send us the competing part number and we will return a line-by-line comparison covering housing geometry, seal type, and internal clearance alignment. Country-of-origin confirmation and full documentation packages are available with every quotation upon request.

Frequently Asked Questions

Q: How do I verify a UCPX05 pillow block is genuine and not a counterfeit with a soft inner ring? A: Request a Certificate of Conformity with batch traceability and cross-check the material certificate for GCr15 or 100Cr6 steel grade. Counterfeit units frequently use uncontrolled heat treatment that produces soft inner rings detectable by hardness testing. We supply documentation with every shipment to support your incoming inspection process.

Q: What should I check when cross-referencing a UCPX05 from another brand? A: Beyond the base number, verify housing bolt-hole spacing, seal type, clearance class, and shaft locking mechanism. A mismatch on any of these parameters can cause field failure even when the bore diameter and outer dimensions appear identical. Our interchange comparison covers all five attributes simultaneously.

Q: Does the spherical raceway in a pillow block work the same way as a self-aligning ball bearing? A: The principle is similar — both compensate for angular misalignment — but a pillow block insert achieves this through the spherical outer surface mating with the housing bore, while a self-aligning ball bearing uses a spherical outer raceway within a single unit. The pillow block approach separates the alignment function from the housing, allowing field-replaceable inserts.

Q: Which corrosion-resistant features matter most in washdown environments? A: Surface treatment on the housing and insert outer ring, combined with contact-type seals that prevent moisture ingress to the raceway. Non-contact shields leave a gap that allows water and cleaning chemicals to reach the rolling elements, accelerating pitting and grease breakdown.

Q: What are typical lead times and MOQ for export-packed UCPX05 orders? A: Lead times depend on current inventory position at authorized distributor warehouses and the specific suffix configuration required. MOQ is typically aligned to standard export carton quantities. Contact us with your required quantity and destination port for a confirmed schedule.

Secure Your Verified UCPX05 Supply Send us your application parameters or OEM equipment number, and we will return a specification-matched quotation with full documentation within one business day.
