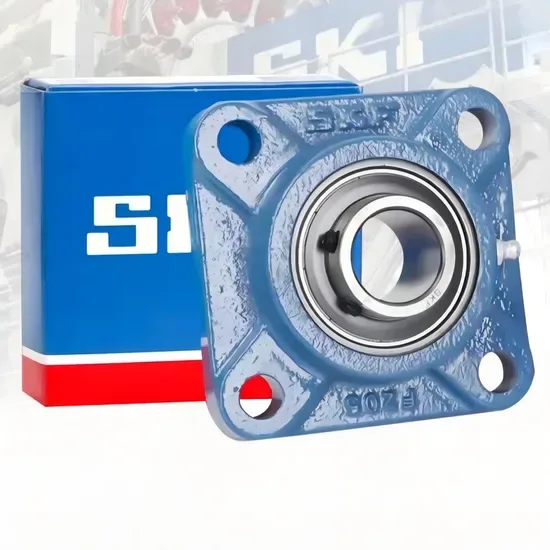

UCF314 Pillow Block Bearing Square Flange Unit Wholesale

Traceable Supply Chain Documentation — Every UCF314 unit ships with batch-level conformity certificates and origin paperwork to support customs clearance and buyer-side authenticity audits.

Technical Specifications

Some dimensional parameters such as bore diameter, dynamic/static load ratings, and limiting speed require verification against the manufacturer catalog for the specific brand variant requested.

Application Suitability

Why a Square Flange Pillow Block Fails Before Its Calculated L10 Life

Misalignment and contamination destroy calculated life long before fatigue sets in.

In desert climates and grain-handling facilities, I have watched pillow block units fail within weeks while their L10 calculations predicted years. The root cause was almost never load miscalculation. Fine particulate contamination bypassed inadequate seals, and shaft misalignment from thermal growth concentrated stress on one side of the raceway [NEED_CITE: bearing contamination as leading failure mode in industrial environments]. When the UCF314 pillow block bearing with square flange is specified without confirming seal type and internal clearance for the actual operating temperature, the insert bearing binds thermally or ingests abrasive dust — neither failure mode appears in a catalog life chart.

How the UCF314 Matches Conveyor and Agricultural Duty Profiles

The spherical outer ring on the UCF314 insert bearing accommodates static misalignment up to a few degrees, which is common when conveyor frame weldments are not perfectly square or when agricultural equipment frames flex under field loads. This self-aligning capability prevents edge-loading that would otherwise spall the raceway within the first few hundred operating hours. For procurement teams replacing OEM-specified blocks, verifying that the replacement unit offers the same spherical raceway geometry — not just the same bore and bolt pattern — is the single most important cross-reference check.

Temperature Swings, Dust, and Seal Selection in the Field

On a conveyor line in Riyadh, ambient temperatures regularly exceeded 45°C and bearing operating temperatures pushed past 80°C under continuous duty. Standard stamped steel shields allowed fine desert sand into the raceway within weeks, while CN internal clearance collapsed under thermal expansion [NEED_CITE: thermal expansion effects on bearing internal clearance in high-temperature applications]. The UCF314 pillow block bearing with square flange must be specified with contact seals when the environment contains abrasive particulates, and clearance must be confirmed at C3 or wider when sustained operating temperatures exceed typical ambient ranges. Grease selection also matters — high-temperature polyurea or lithium-complex greases maintain film strength where standard lithium grease would thin and bleed out.

Inside the UCF314 Suffix Breakdown

The UCF prefix identifies a square flange housing with a four-bolt mounting pattern, designed for surfaces perpendicular to the shaft axis where a rigid bolt-down interface is needed. The 3-series insert bearing features a wide inner ring with a locking mechanism — typically setscrew or eccentric collar — that secures the shaft without requiring a tight tolerance fit on the journal. The spherical outer raceway mates with the matching spherical seat inside the cast iron housing, enabling self-alignment. Single-row construction handles predominantly radial loads with moderate axial capacity. Corrosion-resistant and high-temperature variants address specific environment demands that standard units cannot survive beyond a short service window.

What Incorrect Specifications Cost After Installation

A replacement pillow block that matches bore and bolt spacing but ships with CN clearance instead of C3, or with shields instead of contact seals, can appear identical on the shelf. Once installed in a high-temperature or contaminated environment, premature seizure, cage fracture, or raceway spalling follows — each triggering unplanned downtime, lost production, and sometimes catastrophic shaft damage [NEED_CITE: ISO 15243 rolling bearing failure classification modes]. Warranty claims on such failures are routinely denied because the specification mismatch constitutes misapplication, not manufacturing defect.

What We Check Before Any UCF314 Leaves Our Warehouse

Before quoting, we confirm the required clearance class, seal type, and locking mechanism against the actual application parameters — not just the base model number. Every unit we source comes through authorized distributor channels with batch-level documentation. Our cross-reference database aligns insert bearing dimensions, housing bolt patterns, and suffix details across brands so substitutions do not introduce silent mismatches. For import buyers, we provide country-of-origin documentation and HS code guidance to prevent customs delays. Third-party dimensional inspection is available for high-volume orders before shipment.

Documentation & Authenticity

• Supplier Certificate of Conformity with batch and lot traceability linking the UCF314 unit to its production run
• Material certificate confirming housing and insert bearing metallurgy for corrosion-resistant and high-temperature variants
• Dimensional inspection report verifying bore diameter, flange bolt-hole spacing, and spherical seat concentricity
• Country-of-origin documentation supporting import compliance and customs classification
• QR code verification pathway enabling the buyer to authenticate the unit through brand official apps

Storage, Handling & Mounting

• Keep the UCF314 in its original sealed carton until installation to protect the pre-packed grease from moisture contamination
• Store in a dry environment with stable temperature to prevent condensation inside the housing, especially critical for corrosion-resistant variants destined for washdown areas
• Use clean gloves when handling the insert bearing exposed surfaces; fingerprint oils accelerate corrosion on the spherical outer ring before mounting
• Mount the four-bolt square flange housing on a flat, machined surface and tighten bolts in a cross pattern to avoid distorting the housing bore and compromising self-alignment
• For set-screw locking insert bearings, tighten set screws to the manufacturer specified torque to avoid under-clamping on the shaft or crushing the inner ring

Request a Specification-Matched Quote

Share your operating parameters — shaft speed, ambient and operating temperature, load type, and contamination exposure — so we can confirm the correct clearance, seal configuration, and grease fill for your UCF314 pillow block bearing with square flange. If you are replacing an existing OEM unit, provide the equipment nameplate or original part number for cross-reference verification. We will respond with a quotation including lead time, documentation package details, and origin certification.

Frequently Asked Questions

Q: How can I verify that a UCF314 pillow block unit is genuine before installation? A: Check the manufacturer marking for laser-etched or stamped branding with consistent font depth and spacing. Scan any QR code through the brand official app rather than a generic reader. Request the supplier Certificate of Conformity and cross-check the batch number against the packaging. Counterfeit units often have soft inner rings detectable with a simple file test on a non-functional surface.

Q: What cross-reference details matter beyond the base UCF314 designation? A: The insert bearing internal clearance, seal or shield type, locking mechanism, and housing material all affect field performance. A cross-reference that matches only bore diameter and bolt spacing can deliver a unit that fails under your specific temperature or contamination conditions.

Q: When should I choose a self-aligning pillow block over a rigid flange unit? A: Self-aligning spherical raceway designs like the UCF314 are necessary when shaft deflection, frame flex, or mounting surface imperfections create static misalignment. Rigid housings require near-perfect alignment or they transfer bending moments directly into the bearing, causing premature edge stress and raceway spalling.

Q: What material options are available for corrosive or high-temperature environments? A: Corrosion-resistant variants use stainless steel insert bearings or coated housings for washdown and chemical exposure. High-temperature variants employ heat-stabilized rings and specialized grease fills rated for sustained elevated operating temperatures. Confirm the specific temperature range and chemical exposure before selection.

Q: What installation mistakes cause early UCF314 failure? A: Overtightening set screws, mounting on uneven surfaces that exceed the self-alignment range, mixing incompatible greases during relubrication, and operating without seals in contaminated environments are the most common installation-side causes of premature failure.
