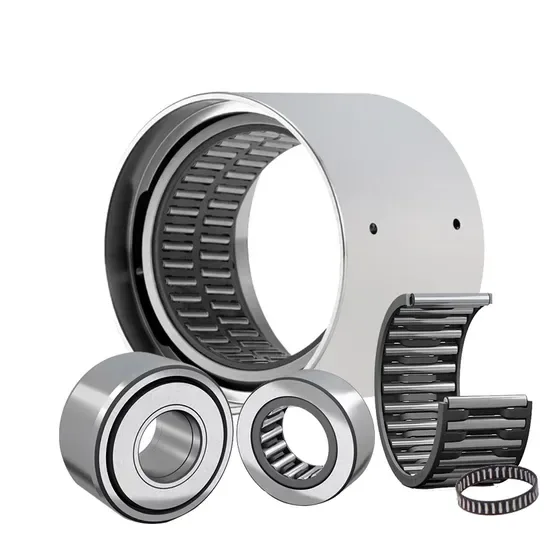

INA NA6908-ZW-XL Needle Roller Bearing 40x62x40mm Genuine

Traceable X-Life Sourcing — Every INA NA6908-ZW-XL needle roller bearing we ship is backed by batch-level documentation from authorized Schaeffler distributor channels, ensuring full material and origin traceability for your import compliance.

Technical Specifications

Note: The XL suffix denotes the X-life premium performance series. Specific internal geometry optimizations associated with X-life should be verified against the current Schaeffler catalog for application-critical installations.

Application Suitability

What Happens When You Cross-Reference Only the Base Number

A bore, OD, and width match is not a functional match — missing the ZW double-row arrangement or X-life raceway profile turns a compact high-capacity bearing into a premature failure point.

I have torn down enough returned needle roller units to see the pattern: a maintenance team replaces a failed double-row unit with a single-row substitute because the supplier matched only the 40x62x40 envelope. The single row cannot distribute the radial load across two roller sets, concentrating stress on half the raceway. Spalling appears within months, sometimes weeks. In one gearbox application, the cage pockets fractured under cyclic loading because the substitute lacked the optimized roller-end geometry that the X-life profile provides [NEED_CITE: needle roller bearing failure modes under concentrated cyclic stress]. That is the cost of treating a suffix as optional.

How the Double-Row ZW Layout Serves Compact Gearbox Shafts

The INA NA6908-ZW-XL needle roller bearing packs two full-complement roller sets side by side within the same 40 mm width, nearly doubling radial load capacity compared to a single-row equivalent without increasing the mounting envelope. In gearbox intermediate shafts where axial space is constrained by adjacent gears and snap ring grooves, this arrangement carries the full radial load while maintaining the slim cross-section that needle rollers are chosen for. We have helped distributors in Central Asia swap out oversized cylindrical roller bearings for ZW-arrangement needle units, freeing up axial space for redesigned gear stacks without altering the housing bore.

Operating Loads, Speeds, and Lubrication Demands

Radial loading dominates in nearly every application for this 40 mm bore needle roller — there is no meaningful axial capacity to speak of, so any thrust component must be handled by a separate thrust washer or bearing. Speeds in gearboxes and compressors typically stay moderate, where sheet steel cages perform well without generating excessive friction heat. Temperature matters less for the cage itself and more for the lubricant: open-type bearings like this depend entirely on the housing oil bath or grease packing, and thermal expansion at elevated operating temperatures can close the internal operating clearance faster than expected [NEED_CITE: thermal expansion effects on internal clearance in needle roller bearings]. Oil lubrication with filtration is always preferred over grease in continuously running gearboxes, both for heat removal and for flushing wear debris away from the roller-raceway contact zone.

Reading the Specs That Actually Matter

The static load rating of 116,000 N versus the dynamic rating of 74,000 N tells you this bearing will spend most of its life under rolling fatigue rather than static brinelling — standard for rotating shaft applications. The fatigue load limit of 19,400 N indicates the threshold below which the X-life optimized raceway profile can theoretically achieve extended fatigue life, provided lubrication film thickness and cleanliness are maintained. Double-row construction with a sheet steel cage means the rollers are guided and separated consistently, preventing skewing and edge loading that would otherwise truncate the L10 calculation. The included inner ring is essential when the shaft cannot be hardened and ground to serve as a raceway directly — a common situation in repair and MRO contexts where replacing the entire shaft is neither practical nor economical.

The Downtime Multiplier Behind Incorrect Substitution

Correct specification and verified provenance protect you from a cascade of costs that never appear on the purchase order. An incorrect clearance class or a missing X-life raceway profile accelerates surface fatigue, which ISO 15243 classifies as spalling and flaking — damage modes that contaminate the lubricant and propagate to adjacent bearings [NEED_CITE: rolling bearing damage classification per ISO 15243]. A counterfeit unit with a soft inner ring will brinell under static load during assembly, creating vibration signatures that maintenance teams spend days chasing through the drivetrain. Unplanned downtime on a gearbox or compressor line rarely costs less than the bearing itself; it costs the production window, the emergency freight, and the credibility of whoever approved the purchase.

What We Verify Before Your INA NA6908-ZW-XL Ships

We source this INA NA6908-ZW-XL needle roller bearing through authorized Schaeffler distributor channels, which means the batch number on the box traces back to the manufacturer's production records. Every shipment includes cross-reference matching that checks not just bore, OD, and width but also the ZW double-row arrangement, cage type, and X-life designation — so you never receive a single-row or non-XL unit by mistake. Our engineering team reviews application parameters you provide and flags potential mismatches before the quotation stage, catching errors that would otherwise surface on the assembly floor. Country-of-origin documentation and HS code classification support are prepared proactively for import declarations, reducing customs clearance delays at destination ports.

Documentation & Authenticity

• Supplier Certificate of Conformity referencing the INA NA6908-ZW-XL batch and lot number for full supply chain traceability
• Material certificate confirming bearing steel composition consistent with X-life metallurgical specifications
• QR code verification pathway through Schaeffler's official product authentication app, checked before dispatch
• Dimensional inspection report verifying bore, OD, and width tolerances against INA published specifications
• Country-of-origin documentation package prepared for import compliance at destination

Storage, Handling & Mounting

• Keep the INA NA6908-ZW-XL in its original sealed packaging until the moment of installation; the open-type design leaves raceways and needle rollers exposed to airborne contaminants the instant the wrapping is removed
• Store flat in a temperature-stable environment; thermal cycling in uncontrolled warehouses promotes condensation inside the packaging, which attacks the corrosion-preventive oil film on the bearing steel surfaces
• Handle with clean, lint-free gloves — fingerprint acids on the exposed inner ring bore or outer diameter can initiate corrosion pits that act as stress concentrators under radial load
• Mount the inner ring onto the shaft using induction heating rather than mechanical pressing; excessive press force risks brinelling the needle rollers against the raceway before the unit ever sees service
• Verify shaft and housing fit tolerances before assembly; an undersized shaft allows inner ring creep, while an oversized housing bore compromises the interference fit needed for the outer ring to carry load evenly across both roller rows
• Establish an external sealing solution at the housing level, since this open-type bearing has no integrated seals to exclude dust, moisture, or metal particulates from the roller-raceway contact zone

Request a Quotation with Technical Review

Share your application parameters — shaft speed, radial load, operating temperature, and housing seal arrangement — so we can confirm the INA NA6908-ZW-XL is correctly specified for your duty cycle. If you are replacing an existing unit, provide the OEM equipment number or the marking on the failed bearing for cross-reference verification against our interchange database. We will respond with a quotation that includes current batch availability, lead time, and the full documentation package for your import records.

Frequently Asked Questions

Q: How do I verify the authenticity of an INA NA6908-ZW-XL needle roller bearing I received? A: Use Schaeffler's official mobile application to scan the QR code on the product packaging. The app connects to the manufacturer's authentication database and confirms whether the batch number and product code match a genuine production run. We perform this check on our side before every dispatch and include the verification result in the shipment documentation.

Q: Can I substitute a single-row needle roller bearing for the NA6908-ZW-XL double row? A: The bore, OD, and width may match, but a single-row unit carries roughly half the dynamic load capacity and distributes stress across one roller set instead of two. This concentrated loading accelerates surface fatigue and cage wear in applications where the double-row ZW arrangement was originally specified. Always verify the row arrangement in addition to the dimensional envelope.

Q: What lubrication method is recommended for the open-type NA6908-ZW-XL? A: Open-type needle roller bearings rely entirely on the housing lubrication system. Oil bath or circulating oil lubrication is preferred in continuous-duty gearbox and compressor applications, providing both lubrication film replenishment and heat removal. Grease can be used in slower-speed or intermittent-duty applications, but re-lubrication intervals must account for grease degradation and contamination ingress since there are no integrated seals.

Q: What cross-reference checks should I perform beyond the base designation? A: Beyond matching bore, OD, and width, confirm the ZW double-row arrangement, the XL X-life series designation, cage type, and whether an inner ring is included. Missing any of these attributes can result in a unit that fits the envelope but fails under operating conditions due to insufficient load capacity, inadequate fatigue resistance, or incorrect shaft interface.

Q: Do you provide country-of-origin documentation for customs clearance? A: Yes. Every shipment of the INA NA6908-ZW-XL includes country-of-origin documentation and HS code classification to support import declarations at your destination port. We prepare these documents proactively to minimize customs hold times.
