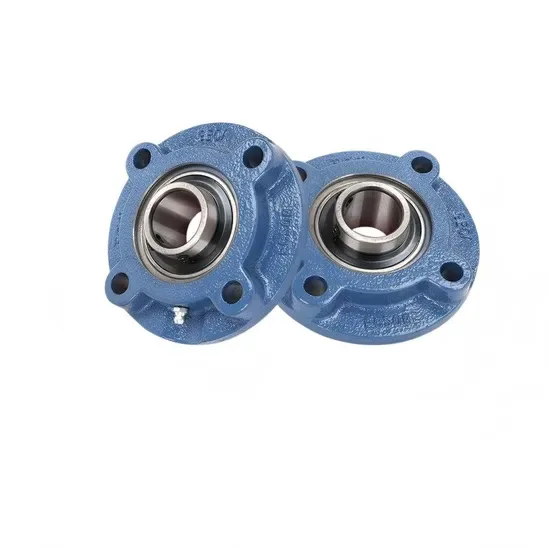

UCFCX16 Round Flange Insert Bearing Pillow Block Unit

Verified Supply Chain — UCFCX16 round flange insert bearing sourced through authorized distributor channels with batch-level traceability and country-of-origin documentation for import compliance.

Technical Specifications

Note: The X16 suffix is an unverified designation and requires manufacturer catalog confirmation before final procurement.

Application Suitability

What Happens When Flange Insert Bearings Fail Cross-Reference

Matching the base number is only the beginning — a missed suffix or wrong locking method can shut down a line.

A distributor once shipped UCFCX16 extended inner ring round flange insert bearing pillow block unit replacements to a grain handling facility in Mombasa. The base code matched, but the locking mechanism differed from the OEM specification — set screw instead of eccentric collar. Under the vibration of continuous conveyor operation, the set screws loosened progressively, and the inner ring began to creep on the shaft. Within two weeks, fretting corrosion had scored the shaft journal beyond rework. The plant had to replace both the bearing units and the shaft sections. That kind of cascading damage never shows up in the unit price comparison buyers run at procurement stage. [NEED_CITE: bearing mounting and locking method impact on shaft fretting per ISO 15243]

Matching the UCFCX16 to Your Conveyor or Harvester Line

The UCFCX16 extended inner ring round flange insert bearing pillow block unit is built for applications where shaft misalignment and moderate radial loads are constant realities. The spherical raceway between the outer ring and housing bore allows self-alignment, absorbing the frame deflection common in long-span conveyor structures and agricultural equipment frames. The extended inner ring provides a wider clamping surface on the shaft, which matters when shock loads from material impact or uneven crop feed could otherwise spin a standard-width insert. When we cross-reference this unit for a buyer, we check flange bolt circle diameter, shaft diameter, and locking mechanism type together — not just the four-digit base code — so the replacement drops in without modification.

The Operating Conditions That Define Insert Bearing Life

Radial loads on conveyor flange units tend to be steady-state with periodic shock when material jams or belt splices pass over the pulley. The spherical raceway handles static misalignment from frame settlement, but dynamic shock still transfers through the rolling elements. Ambient temperature in tropical or enclosed agricultural processing environments regularly exceeds typical workshop assumptions, meaning thermal expansion of the shaft changes the internal clearance of the insert under operating conditions. Grease-filled and sealed insert bearings reduce maintenance intervals, but in high-dust environments like grain handling or cement transfer, the seal lip contact pressure must balance contamination exclusion against friction-generated heat. Installation method matters equally — pressing the housing into a machined flange plate requires controlled force on the outer ring only, never through the insert itself, to avoid brinelling the raceway. [NEED_CITE: insert bearing installation practices and load transfer paths]

Reading Between the Specs: Spherical Raceway and Extended Inner Ring

The spherical raceway is the feature that separates a true self-aligning insert from a rigid cartridge unit. It permits angular misalignment between shaft and housing, compensating for frame distortion, uneven foundation settling, or welding tolerance stack-up in fabricated conveyor structures. The extended inner ring adds shaft contact length, distributing the clamping load over a larger area and reducing the contact pressure at each locking point. In corrosive or washdown environments, the wider inner ring also positions the seal further from the housing face, giving contaminants a longer path to travel before reaching the rolling elements. The corrosion-resistant and high-temperature features noted for this designation suggest suitability for food processing or hot-air dryer applications where standard chrome steel and nitrile seals would degrade prematurely.

The Hidden Cost of Specifying by Base Number Alone

A UCFCX16 extended inner ring round flange insert bearing pillow block unit ordered on base number alone may arrive with the wrong clearance, the wrong locking collar, or a cage material unsuitable for the operating speed. When clearance is too tight for the thermal growth of the application, the bearing runs with negative internal clearance and the rolling elements skid rather than roll — cage failure follows in weeks, not years. When the locking mechanism does not match the OEM design, field technicians improvise with adapters or re-drilled shafts, introducing stress concentrations that lead to shaft fracture under cyclic loading. ISO 281 life calculations assume correct mounting and clearance; neither assumption holds when the replacement unit is a partial match. Unplanned downtime on a continuous-process line costs far more than the bearing itself. [NEED_CITE: consequences of incorrect bearing clearance selection on L10 life per ISO 281]

How We Reduce Procurement Risk on Flange Insert Units

Every UCFCX16 extended inner ring round flange insert bearing pillow block unit we quote is traced back to the authorized distributor channel it was sourced through, with batch documentation that links to the manufacturer's production records. Our cross-reference database checks flange dimensions, shaft diameter, locking mechanism type, and seal configuration against the OEM equipment number you provide — not just the bearing base code. For buyers importing into regions with strict origin documentation requirements, we supply country-of-origin certificates and HS code data with the shipment so customs clearance does not become a second bottleneck. When a buyer needs to substitute across brands due to lead time, we verify that the replacement matches on clearance class, seal type, and locking method before confirming interchangeability.

Documentation & Authenticity

• Supplier Certificate of Conformity (COC) linking the UCFCX16 batch to authorized channel procurement records
• Country-of-origin certificate and HS code documentation for customs clearance at destination port
• Third-party dimensional inspection report covering flange bolt circle, bore diameter, and housing OD before dispatch
• Batch and lot traceability with manufacturer production date codes preserved on inner packaging
• QR code or verification pathway via brand official apps where applicable for field-level authenticity checks

Storage, Handling & Mounting

• Retain export-standard carton and pallet packing until the UCFCX16 units reach the installation site; early repacking in humid port-area warehouses risks corrosion on the spherical outer surface before mounting
• For units with pre-applied corrosion-resistant treatment, avoid solvent cleaning before installation — it strips the protective film intended for the high-temperature or washdown environments this designation targets
• Press the housing into the flange plate using force applied only to the outer ring; driving through the insert inner ring transfers load across the rolling elements and brinells the spherical raceway
• Confirm shaft diameter tolerance before mounting the extended inner ring — an undersized shaft allows micro-movement under load even with the locking mechanism fully engaged
• Verify flange bolt torque after the first 48 hours of operation; thermal cycling in high-temperature applications can relax bolt preload and shift housing alignment

Request a Quotation or Technical Review

Share your application parameters — shaft speed, operating temperature, radial load estimate, and ambient conditions — so we can confirm the UCFCX16 extended inner ring round flange insert bearing pillow block unit matches your duty cycle before pricing. If you have the OEM equipment number or the nameplate data from the existing unit, send it with your inquiry and we will run a full cross-reference check covering locking method, seal type, and flange dimensions. For bulk procurement, ask for the documentation package and available batch dates so you can align lead times with your maintenance shutdown schedule.

Frequently Asked Questions

Q: How do I verify that a UCFCX16 insert bearing is genuine and not a counterfeit clone? A: Start with the batch and lot number on the inner packaging and cross-check it through the manufacturer's official verification app or authorized distributor records. Counterfeit units often replicate the outer marking but fail on material hardness, raceway surface finish, and cage material quality. We supply supplier COC and batch traceability documentation with every shipment so you can confirm the authorized channel origin independently.

Q: Why does cross-referencing an insert bearing require more than matching the base number? A: The base number identifies the general size series, but flange bolt circle diameter, shaft locking mechanism (set screw, eccentric collar, or adapter sleeve), seal type, and internal clearance must all match the OEM requirement. A mismatch on any one of these causes installation difficulty, premature loosening, or thermal binding in the field. Our cross-reference checks cover all five parameters, not just the base designation.

Q: When should I specify an extended inner ring insert over a standard inner ring? A: Extended inner rings provide a longer clamping surface on the shaft, which improves grip under shock loads and reduces the risk of inner ring creep. They are preferred in conveyor, agricultural, and material handling applications where load direction reverses or vibration is continuous. Standard inner rings are adequate for light-duty, steady-state applications with minimal shock.

Q: What does the spherical raceway actually do in a flange insert unit? A: The spherical interface between the outer ring and the housing bore allows the insert to pivot slightly, compensating for shaft misalignment caused by frame deflection, foundation settlement, or fabrication tolerances. This self-aligning capability prevents edge loading on the rolling elements and extends service life in structures where perfect alignment cannot be guaranteed.

Q: What is the typical lead time and minimum order for a UCFCX16 batch? A: Lead time and MOQ depend on current stock position at the authorized distributor and the destination port schedule. Request a quotation with your quantity and required delivery date, and we will confirm batch availability, documentation package, and estimated transit window for your specific destination.

Confirm Your UCFCX16 Requirement Send us your OEM equipment number or application parameters — shaft diameter, speed, temperature, and load — and we will return a full cross-reference match with documentation details and pricing. Reach us through your existing sales contact or submit an inquiry with the specifications above.
