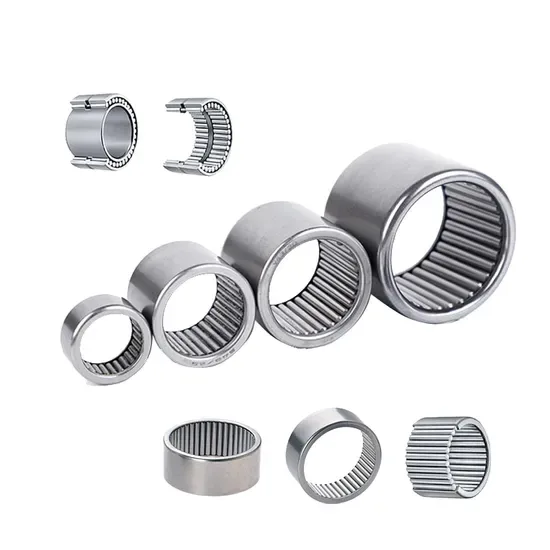

INA NKI95/36-XL Needle Roller Bearing 95x125x36mm Genuine

Authorized Channel Sourcing — Every INA NKI95/36-XL needle roller bearing we ship carries batch-level traceability back to the manufacturer's production facilities, complete with Certificate of Conformity and origin documentation ready for your customs broker.

Technical Specifications

The XL suffix denotes the X-Life series; specific performance parameters associated with this designation should be confirmed against the current INA product catalog prior to final specification lock-in.

Application Suitability

What Happens When a Needle Roller Fails at 3 AM on a Conveyor Line

A single spalled raceway from an unverified source can shut down an entire material handling system.

I once supported a distributor in South America who replaced a conveyor idler bearing with what looked like a matching needle roller unit. The base designation fit, but the inner ring was a standard-ground version rather than the precision-ground variant the OEM specified. Six weeks later, the raceway showed heavy spalling across the loaded zone. The plant blamed the brand. The real culprit was an inner ring that didn't meet the surface finish requirements for the application's continuous radial load cycle. This is not an isolated event — misidentified inner ring specifications and unverified sourcing channels account for a significant share of premature needle roller failures in the field [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

How This 95 mm Needle Roller Bearing Fits Demanding Radial Envelopes

The INA NKI95/36-XL needle roller bearing occupies a compact 125 mm outer diameter while delivering high radial load capacity through its full-complement roller arrangement and included inner ring. This geometry suits applications where shaft diameter is already fixed at 95 mm and housing bore cannot be expanded — common in gearbox retrofits and MRO replacements. The 36 mm width provides adequate roller length to distribute load across a wider contact zone, reducing contact stress on both the shaft and housing raceways. When sourcing this INA NKI95/36-XL needle roller bearing, we cross-check the inner ring surface treatment and cage specification against your application parameters before quoting, rather than matching on bore and OD alone.

Radial Load, Speed, and Thermal Behavior in Continuous Operation

Needle roller bearings in this size range typically operate under sustained radial loads with moderate rotational speeds. The open design means lubrication strategy falls entirely on the housing and shaft system — grease re-lubrication intervals must match the operating temperature envelope, because thermal expansion at sustained elevated temperatures alters the running clearance established at assembly. In environments with heavy particulate contamination such as mining conveyors or agricultural harvesters, external sealing becomes the buyer's responsibility since the bearing itself carries no integral seals. Induction heating of the inner ring to the recommended temperature range ensures proper interference fit without cold-mounting damage to the precision-ground raceway surface [NEED_CITE: needle roller bearing mounting practices and temperature limits].

Decoding the Key Specifications

Cage design and roller spacing. The single-row caged configuration controls roller pitch, preventing roller-to-roller contact that would otherwise increase friction and heat generation under sustained radial loads. Steel cages offer reliable performance across moderate temperature ranges and resist cage pocket wear in applications with oscillating loads.

Inner ring inclusion. The NKI series ships with a hardened and ground inner ring, which means the shaft itself does not need to be hardened to serve as a raceway. This is essential when retrofitting equipment where the original shaft material is case-hardened or through-hardened to a level insufficient for direct needle roller contact — typically below HRC 58.

Open type construction. Without integral seals, this bearing relies on housing labyrinth seals or lip seals to exclude contaminants. The trade-off is lower friction and higher permissible speed compared to sealed variants, but the system-level sealing design must be validated independently.

X-Life series designation. The XL marking on this INA NKI95/36-XL needle roller bearing indicates the manufacturer's improved internal geometry and surface finish standard. In practice, this means enhanced roller profile and raceway finishing that contribute to extended fatigue life under equivalent loading conditions.

What Counterfeit and Mismatched Bearings Actually Cost

Correct specification and verified sourcing protect against failure modes that rarely appear in warranty claims. A needle roller bearing installed with the wrong internal clearance in a thermal-expansion-sensitive application will bind as operating temperature rises, accelerating cage wear and generating localized heat that degrades lubricant life. Counterfeit units with soft inner rings and cloned markings may pass visual inspection but fail within weeks under continuous load, as documented in failure classification frameworks covering material fatigue and manufacturing defects [NEED_CITE: ISO 281 bearing life calculation methodology]. The real cost is never the bearing itself — it is unplanned downtime, collateral damage to shafts and housings, and production losses that dwarf the component price.

How Procurement Engineers Work With Us

Every INA NKI95/36-XL needle roller bearing we supply traces back through authorized distributor channels with documentation you can independently verify. Our cross-reference database matches not only base designations but also clearance class, cage material, and precision suffixes — so when you request an interchange between INA, SKF, or FAG equivalents, the replacement carries identical performance characteristics. For buyers managing import documentation, we provide country-of-origin certificates and HS code classification support tailored to the destination country's customs requirements. Pre-shipment dimensional verification and batch-level lot traceability ship with every order, giving your quality team the evidence they need before the bearing reaches the storeroom.

Documentation & Authenticity

• Supplier Certificate of Conformity referencing the specific INA NKI95/36-XL batch and lot number for full production traceability
• QR code verification pathway via INA's official application to confirm authenticity against the manufacturer's database
• Third-party dimensional inspection report verifying bore, OD, width, and radial internal clearance before dispatch
• Country-of-origin documentation formatted for import compliance, matched to the shipping batch
• Material certificate confirming bearing steel specification for the inner ring and outer ring components
• HS code classification support to streamline customs clearance at destination ports

Storage, Handling & Mounting

• Retain original sealed packaging until mounting; early exposure risks corrosion on the precision-ground inner ring raceway of this open-type bearing
• Store horizontally in a climate-controlled environment; the 1.136 kg weight and 95 mm bore diameter make vertical storage a tipping risk that can damage cage pockets
• Use induction heating for inner ring mounting rather than cold press-fitting, which risks Brinell marks on the needle roller contact surfaces
• Apply recommended grease type and fill quantity to the housing immediately after mounting; this open bearing has no factory pre-lubrication
• Verify shaft hardness meets the minimum HRC requirement for needle roller contact; the included inner ring compensates for softer shafts but still requires proper interference fit
• For dusty environments like agricultural or mining applications, confirm external housing seal integrity before startup — the open design offers no built-in contamination barrier

Request Your Technical Quotation

Share your application parameters — radial load magnitude, operating speed range, temperature envelope, and housing seal configuration — so we can validate the INA NKI95/36-XL needle roller bearing against your specific duty cycle. If you have an OEM equipment number, provide it for cross-reference verification across brand equivalents. Request the full documentation package including origin certificates and batch traceability at inquiry stage to avoid delays during your procurement approval process.

Frequently Asked Questions

Q: How do I verify that the INA NKI95/36-XL I received is genuine? A: Scan the QR code on the packaging using the official INA application to confirm the batch number matches the manufacturer's production records. We also supply a Certificate of Conformity with lot-level traceability, and our documentation package includes batch and lot identifiers you can cross-check independently.

Q: What does the XL suffix mean for needle roller bearing performance? A: The XL marking indicates the X-Life series, which represents the manufacturer's enhanced internal geometry and surface finish standard. This typically translates to optimized roller profile and improved raceway finishing, contributing to extended service life under equivalent loading. Exact performance parameters should be confirmed against the current product catalog for your specific application.

Q: Can I substitute this with a different brand's equivalent needle roller bearing? A: Cross-brand interchange is possible, but you must verify that the replacement matches not only the 95×125×36 mm envelope but also the inner ring surface treatment, cage specification, and clearance class. A base-number-only match often misses these critical details, leading to field failures that appear identical to brand defects.

Q: What are the installation differences between bearings with and without an inner ring? A: The NKI series includes a hardened and ground inner ring, so the shaft does not need to serve as a raceway surface. Bearings without inner rings require the shaft to be hardened and ground to precise tolerances. When replacing a bearing without inner ring with an NKI type, confirm the housing bore accommodates the larger outer diameter introduced by the inner ring assembly.

Q: How do I determine the correct lubrication for this open-type needle roller bearing? A: Open bearings rely entirely on the housing lubrication system. Grease selection must account for operating temperature, speed, and re-lubrication interval. Oil lubrication is suitable for higher-speed applications where heat dissipation is a priority. Your housing seal design must be compatible with the chosen lubricant to prevent both leakage and contamination ingress.

Verify Your INA NKI95/36-XL Requirement Send your application details or OEM equipment number, and we will confirm specification match, document availability, and lead time within one business day.
