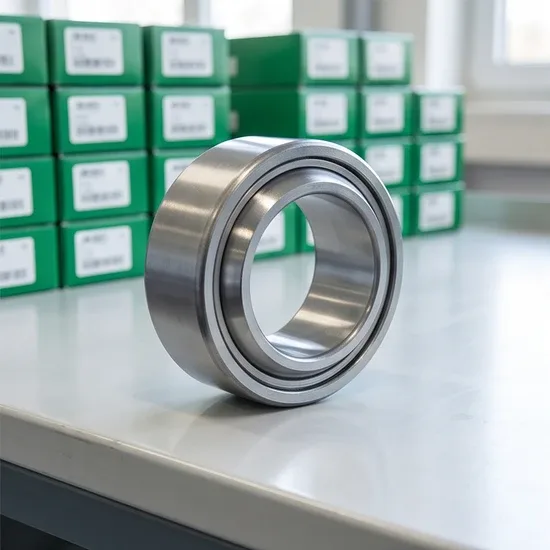

INA GE50ES-2RS GE60ES-2RS Sealed Spherical Plain Bearings

Verified Sourcing Channels — Every INA GE50ES-2RS and GE60ES-2RS unit we ship carries batch-level traceability back to the manufacturer's authorized distributor network, with documentation packages prepared before dispatch.

Technical Specifications

Application Suitability

What Sand Ingress Does to an Unsealed Spherical Plain Bearing

A missing seal suffix turns a season-long component into a weekly replacement.

In dusty quarry sites and open-pit mining operations, fine particulate finds its way into every unsealed joint. Open spherical plain bearings lose their grease film within shifts, and the steel-on-steel sliding contact surface scores rapidly once contamination takes hold. We have seen hydraulic cylinder pivot points on loaders fail repeatedly because the installed bearings carried no contact seals, swallowing abrasive dust with every oscillation cycle. The GE50ES-2RS GE60ES-2RS sealed spherical plain bearing addresses this directly — the 2RS double contact seal retains factory grease and blocks ingress at the sliding interface [NEED_CITE: contamination as a primary cause of premature plain bearing failure per ISO 15243].

Matching the Bearing to Oscillating, Heavy-Load Joints

The GE50ES-2RS GE60ES-2RS sealed spherical plain bearing suits applications where shafts oscillate rather than rotate continuously. In excavator stick-to-bucket joints or hydraulic cylinder eyes, the motion profile involves slow angular sweeps under high radial load, sometimes with shock loading when the bucket teeth hit rock. The steel-on-steel sliding surface handles these heavy static and dynamic loads without the cage fatigue concerns that affect rolling element bearings in pure oscillation. The factory grease fill means the joint is lubricated from the first cycle, and the double lip contact seal keeps that grease in place across the full angular range of movement.

Load Spectrum, Contamination, and Seal Performance in the Field

Outdoor construction and mining equipment faces combined loading — radial forces from equipment weight, moment loads from off-center bucket engagement, and shock from ground contact. Temperatures at pivot points rarely exceed ambient significantly in oscillating applications, but thermal cycling between day and night in desert environments causes condensation inside unsealed joints. The 2RS contact seal design on these bearings addresses both solid contamination and moisture ingress, while the grease fill provides corrosion protection on the sliding surfaces during idle periods [NEED_CITE: sealed versus open bearing service life in contaminated environments].

Decoding the ES and 2RS Suffixes for Procurement Accuracy

The ES suffix confirms a standard design with an outer ring sliding surface treated for wear resistance, paired with an inner ring of bearing-grade steel. This steel-on-steel combination delivers high load capacity in a compact envelope, which matters when linkage geometry leaves minimal space around the pivot pin. The 2RS suffix indicates contact seals on both sides — not shields, not single-side seals, but full bilateral contact seals that ride against the inner ring. For bore diameters of 50 mm and 60 mm respectively, this seal configuration provides effective exclusion of dust and water spray without adding external seal housings. The GCr15 steel construction ensures through-hardened sliding surfaces that resist deformation under static loads encountered during equipment parking or transport.

The Downtime Cost of Ignoring the Suffix

Purchasing a GE50ES without the 2RS suffix for an outdoor linkage application means accepting that the bearing will need external sealing solutions — solutions that add complexity, cost, and failure points. Installing an open bearing in a hydraulic cylinder eye that operates in wet, dusty conditions leads to grease washout and accelerated wear of the sliding surfaces, triggering unplanned equipment stops during peak production periods [NEED_CITE: ISO 281 bearing life calculation factors for contamination]. The correct sealed variant eliminates this failure mode at minimal incremental cost, and the factory grease fill removes the risk of incorrect initial lubrication during assembly.

How We Source and Verify These Bearings for Our Customers

We procure through authorized distributor channels with batch-level documentation, so every shipment of GE50ES-2RS and GE60ES-2RS units arrives with traceability back to the production lot. Our cross-reference database maps the INA designation to equivalent numbers from SKF, FAG, NTN, and other manufacturers, aligning not just the base number but the seal configuration, sliding surface treatment, and dimensional envelope per ISO 12240. When a maintenance engineer provides an OEM equipment number, we verify the bore, outside diameter, and width against the original specification and confirm the 2RS seal requirement matches the operating environment. Material certificates confirm the GCr15 steel grade, and dimensional inspection reports verify bore and OD tolerances before dispatch.

Documentation & Authenticity

• Supplier Certificate of Conformity referencing the specific batch and lot number for each GE50ES-2RS or GE60ES-2RS shipment
• Material certificate confirming GCr15 bearing steel grade for the inner and outer rings
• Dimensional inspection report covering bore diameter, outside diameter, and width against ISO 12240 tolerances
• Country-of-origin documentation prepared for import customs clearance
• HS code classification support for spherical plain bearings entering Middle Eastern, African, or Latin American markets

Storage, Handling & Mounting

• Keep the GE50ES-2RS and GE60ES-2RS bearings in original sealed packaging until the moment of installation — opening early exposes the factory grease fill to airborne contamination
• Store in a dry environment with stable temperature; condensation inside the 2RS seal cavity is unlikely but external corrosion on the outer ring can affect mounting fits
• During installation, avoid prying or hammering directly on the sealed outer ring — damage to the 2RS contact lip compromises the dust and water exclusion that defines this bearing variant
• For hydraulic cylinder pivot applications, confirm the pin fit tolerance before pressing the inner ring — excessive interference can distort the sliding surface and accelerate wear
• These sealed bearings are grease-filled for life under normal oscillating duty; do not attempt to re-grease through the seal lips, as this damages the contact seal and voids the contamination protection

Start the Technical Conversation

Share your application parameters — oscillation angle, radial load magnitude, operating environment, and equipment model — so we can confirm the GE50ES-2RS or GE60ES-2RS meets your requirements. If you have an OEM part number from existing equipment, send it over and we will cross-reference the designation, seal type, and dimensional envelope against the original specification. Request the documentation package including material certificate and country-of-origin papers to prepare your import clearance before shipment.

Frequently Asked Questions

Q: How do I verify the authenticity of INA spherical plain bearings? A: Authentic INA bearings carry laser-etched markings on the outer ring with the designation, batch code, and country of origin. We supply a QR code verification pathway through the brand's official app, along with a Certificate of Conformity tied to the production batch. Counterfeit units often show shallow or inconsistent marking depth and lack traceable batch codes.

Q: What does the 2RS suffix mean on a spherical plain bearing? A: The 2RS suffix indicates double contact seals — one on each side of the bearing. These seals ride against the inner ring outer surface, retaining the factory grease fill and excluding dust, water, and abrasive particles from the sliding contact zone. This differs from open bearings or single-seal variants.

Q: Can I cross-reference GE50ES-2RS and GE60ES-2RS with other brands? A: Yes. The GE..ES-2RS designation follows ISO 12240, so equivalent bearings from SKF, FAG, NTN, and other manufacturers share the same dimensional envelope and performance class. We verify cross-references across bore, outside diameter, width, seal configuration, and sliding surface treatment — not just the base number.

Q: Do sealed spherical plain bearings need re-lubrication? A: The 2RS sealed variants are factory grease-filled and designed for maintenance-free operation under standard oscillating conditions. In extreme contamination or high-frequency oscillation applications, the seal integrity should be inspected periodically, but re-greasing through the seal is not recommended.

Q: How is GCr15 steel verified for these bearings? A: We provide a material certificate confirming the GCr15 steel grade, which corresponds to through-hardened bearing steel with specific carbon and chromium content. This can be cross-checked against international equivalents such as 100Cr6 per EN ISO 683-17.

Secure Your Sealed Spherical Plain Bearings with Full Traceability

Send us your equipment model number or application parameters, and we will confirm the correct sealed variant with complete documentation before shipment.

Contact us through our authorized distributor channels for quotation and lead time confirmation.
