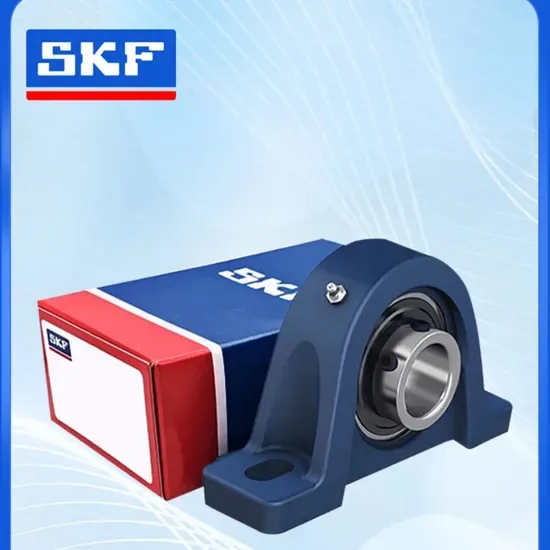

UCP211 Pillow Block Bearing Unit Wholesale Supplier

Batch-Traceable Sourcing — Every UCP211 pillow block unit ships with supplier Certificate of Conformity and material documentation linking the insert bearing and housing to a specific production batch for field accountability.

Technical Specifications

Application Suitability

When a Soft Inner Ring Turns Your Conveyor Into a Maintenance Trap

*A pillow block that passes dimensional inspection can stillinner ring never reached proper hardness.**

The UCP211 pillow block bearing unit with extended inner ring is one of the most widely specified mounted bearing units across conveyor and agricultural systems. Buyers routinely match the base designation — UCP211 — and assume interchangeability acro*rial integrity underneath the label. A distributor operating a sand-and-gravel conveyor line reported repeated set screw loosening on their UCP211 units. The set screws were torqued to spec, shafts were within tolerance, yet the screws kept spinning. Investigation showed the inner ring material was soft — it had not undergone through-hardening, so the set screw threads simply chewed into the ring surface under load. The units had been sourced from an unverified middleman who cloned the packaging but skipped the metallurgy. That pattern repeats across industries where purchasing decisions rest on catalog numbers alone. [NEED_CITE: set screw failure modes in mounted bearing units per ISO 15243]

Matching the UCP211 to Conveyor and Agricultural Loads

The UCP211 pillow block bearing unit with extended inner ring is designed for moderate radial loads on shafts where some angular misalignment is unavoidable. In conveyor systems, shaft deflection under belt tension creates exactly the condition the spherical raceway compensates for — the outer ring self-aligns within the housing bore, preventing edge loading on the rolling elements. For agricultural equipment operating in dusty, humid conditions, the extended inner ring and set screw locking arrangement provides axial fixation without requiring machined shaft shoulders, which simplifies field replacement during harvest season when downtime windows are narrow.

We regularly match UCP211 requests to application parameters — load magnitude, shaft speed, ambient temperature, exposure to moisture or dust — and cross-reference against equivalent housings from SKF, FAG, NSK, and NTN to verify that dimensions, set screw positions, and insert bearing specifications actually align. That cross-reference check goes beyond the base number.

Load Patterns, Contamination, and Thermal Behavior in the Field

Pillow block units like the UCP211 typically see combined radial and light axial loading with moderate rotational speeds. The spherical raceway handles static misalignment from housing mounting surface irregularities, but dynamic shaft deflection under variable load creates cyclic misalignment that the insert bearing must absorb continuously. In grain handling and mining environments, fine particulate contamination is a constant threat — the seal selection on the insert bearing determines whether grease purges contaminants effectively or whether abrasive dust migrates past the seal lip into the raceway.

Temperature fluctuation affects the interference fit between the shaft and the inner ring bore. In high-temperature zones — near kilns, dryers, or hot material conveyors — thermal expansion can reduce the effective grip of the set screws on the shaft, which is why verifying the insert bearing's internal clearance and the housing's thermal dissipation capacity matters before installation. Re-lubrication intervals must account for both thermal degradation of the grease and contamination washout from pressure washing during sanitation cycles. [NEED_CITE: re-lubrication interval adjustment for contaminated environments]

Spherical Raceway, Set Screw Locking, and Single-Row Load Capacity

The spherical raceway in the UCP211's outer ring is the defining feature of pillow block units — it permits the outer ring to pivot within the housing bore, compensating for up to a few degrees of angular misalignment between the shaft and the mounting surface. This self-alignment capability prevents edge loading on the rolling elements, which would otherwise concentrate stress and trigger premature fatigue spalling per ISO 281 life calculations.

The extended inner ring with set screw locking is the other critical design element. The extended inner ring widens the contact surface against the shaft, distributing the clamping force from the set screws over a larger area. This reduces the contact pressure on the shaft surface and resists the rotational creep that causes fretting corrosion on inadequately locked insert bearings. The single-row ball construction prioritizes radial load capacity, which aligns with the dominant load direction in most conveyor idler and agricultural shaft applications.

The corrosion-resistant and high-temperature feature designation indicates the unit is specified for environments where standard bearing steel and conventional grease would degrade — whether from moisture exposure in washdown areas or elevated operating temperatures near process heat sources.

The Downtime Cost That Never Appears on the Purchase Order

Correct sourcing of a UCP211 pillow block bearing unit with extended inner ring means verified material hardness, dimensionally accurate housing bores, and seals matched to the actual contamination environment. The wrong unit — whether from ring hardness shortcuts, mismatched clearance, or cloned packaging that conceals inferior components — generates costs far beyond the unit price. Unplanned conveyor stops cascade through production schedules. Shaft damage from spinning inner rings requires machining or replacement. Repeated bearing changeouts consume maintenance labor that could address preventive tasks. [NEED_CITE: unplanned downtime cost multipliers in continuous process industries]

A unit that fails within weeks of installation voids any remaining warranty on the driven equipment and shifts the maintenance team from planned work to reactive firefighting — a pattern ISO 15243 classifies under mounting-related and material-related failure modes.

What Our Supply Chain Verification Covers for Pillow Block Orders

We source UCP211 units through authorized distributor channels, which means the insert bearing and housing arrive with traceable batch documentation — not repackaged stock from unverified trading desks. Our cross-reference database matches housing dimensions, set screw positions, and insert bearing internal specifications across SKF, FAG, NSK, and NTN equivalents, so buyers substituting brands confirm full dimensional and functional alignment before committing to an order.

Every shipment includes material certificates confirming the insert bearing ring hardness and steel grade, dimensional inspection reports verifying housing bore tolerances, and country-of-origin documentation required for customs clearance in markets with strict import compliance rules. For buyers who have been burned by counterfeit pillow blocks before, we walk through QR verification pathways using brand official apps so you can confirm authenticity on your own bench before installation.

Documentation & Authenticity

• Supplier Certificate of Conformity with batch lot number linking each UCP211 insert bearing to its production run
• Material certificate confirming inner ring steel grade and hardness treatment for set screw locking integrity
• Third-party dimensional inspection report verifying housing bore spherical tolerance and insert bearing fit
• Country-of-origin documentation and HS code classification for import customs clearance
• QR code verification guidance using brand official apps for pre-installation authenticity confirmation

Storage, Handling & Mounting

• Keep UCP211 units in original export carton packing until installation day — early opening in humid or dusty storage environments contaminates the grease fill before the unit reaches the shaft
• Store on wooden pallets above floor level in a dry area; the cast iron housing resists corrosion but the insert bearing's exposed seal lips are vulnerable to moisture ingress over extended storage
• Torque the set screws to the manufacturer's specification for the 55 mm shaft bore — under-torquing allows inner ring creep, over-torquing risks stripping the threads on the extended inner ring
• Clean and inspect the shaft surface before mounting; any burrs or corrosion pits at the set screw contact points will compromise the locking grip and lead to fretting within the first operating cycle
• Align the housing base square to the mounting surface before tightening foundation bolts — forcing the housing into position after bolting preloads the spherical raceway and eliminates the self-alignment compensation the UCP211 design provides

Request a Technical Review Before You Commit

Share your conveyor or equipment shaft parameters — load, speed, operating temperature, and contamination exposure — so we can confirm the UCP211 pillow block bearing unit with extended inner ring is the correct selection and verify clearance and seal suitability for your specific duty cycle. If you are replacing an OEM-specified unit, provide the equipment number and we will cross-reference against equivalent housings across major brands to confirm dimensional and functional interchangeability. Request the documentation package and batch availability confirmation to align with your procurement timeline.

Frequently Asked Questions

Q: What must I check when cross-referencing a UCP211 against equivalent units from other brands? A: Housing dimensions — bolt spacing, shaft center height, and base width — must match exactly. Beyond the housing, verify that the insert bearing's internal clearance class, set screw positions on the extended inner ring, and seal type all align with your application requirements. A base number match alone does not guarantee interchangeability.

Q: What does the "211" designation mean in the UCP series numbering? A: The number sequence in the UCP series indicates the dimensional series and bore size. The "2" series refers to a medium-duty insert bearing dimensional envelope, and "11" corresponds to a 55 mm bore diameter. This numbering convention is consistent across most manufacturers producing interchangeable pillow block units.

Q: What are the set screw torque and shaft preparation requirements for installation? A: The shaft must be clean, smooth, and free of burrs at the set screw contact zone. Torque the set screws to the value specified in the manufacturer's mounting instructions for the 55 mm bore size. After initial run-in, recheck set screw torque as vibration can cause settling.

Q: How should I manage re-lubrication for UCP211 units in dusty environments? A: In contaminated environments like grain handling or mining, re-lubrication intervals must be shortened to purge particulate from the seal area. Use grease compatible with the factory fill and apply through the housing grease fitting until fresh grease purges from the seal lip, indicating the old contaminated grease has been displaced.

Q: What lead times and order quantities apply to UCP211 pillow block units for export? A: Lead times depend on batch availability at authorized distributor channels and destination logistics. For export orders with standard packing on wooden pallets, share your target delivery date and required quantity so we can confirm stock position and consolidate documentation for your import clearance.

Confirm Your UCP211 Sourcing Path Send your shaft parameters or OEM equipment number, and we will return a technical cross-reference with full documentation and batch availability. Contact: [client email / inquiry form per company profile]
