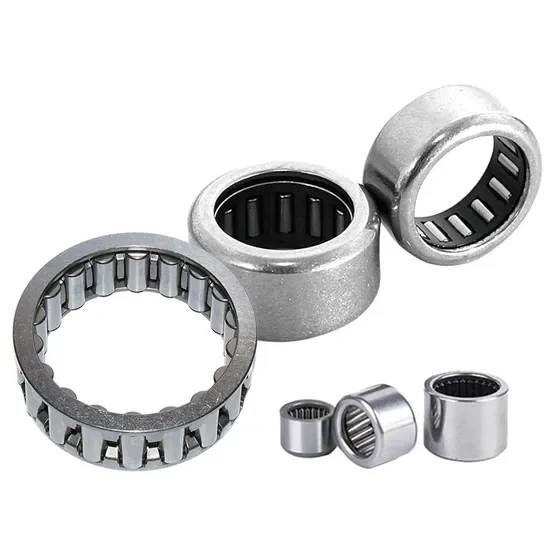

INA RNAO25X35X17-XL Needle Roller Bearing 25x35x17mm

Authorized Channel Sourcing — Every INA RNAO25X35X17-XL ships with batch-level traceability back to the manufacturer's production records, supporting QR verification and origin documentation for customs clearance.

Technical Specifications

The XL suffix appears on the product label but its precise catalog definition remains to be confirmed against the manufacturer's technical documentation; please request our verification note when ordering.

Application Suitability

What Happens When the Shaft Raceway Is Too Soft for the RNAO25X35X17-XL

A soft shaft surface turns a needle roller bearing into a grinding tool — not a bearing.

The RNAO series runs directly against the shaft journal with no inner ring. When the shaft surface falls short of 58 HRC, the rollers embed into the softer metal within hours. I inspected a textile line where the maintenance team replaced bearings monthly because their supplier never specified the shaft hardness requirement. The worn rollers scored the shaft shoulder, generating debris that contaminated adjacent positions. That line carried six identical stations, and every one of them failed on the same schedule. The root cause wasn't the bearing — it was the missing raceway spec [NEED_CITE: shaft raceway hardness requirements for needle roller bearings without inner ring].

Matching the INA RNAO25X35X17-XL to Compact Radial Positions

The INA RNAO25X35X17-XL delivers substantial radial load capacity within a cross-section of only 10 mm, making it the right call where housing space is restricted but load demand is not. Its rib-less outer ring design means the housing bore must provide axial guidance, so the seat geometry needs to be machined with a proper shoulder. We once cross-referenced this bearing for a packaging machine builder who had been receiving incorrect ribbed versions from another source; those ribs contacted the shaft shoulder and generated axial binding within days. Supplying the correct rib-less variant resolved their field failures entirely.

Load Patterns and Thermal Behavior in the 25×35×17 Envelope

This needle roller bearing operates under predominantly radial loading with no axial capacity to speak of, so any thrust component must be handled by a separate thrust washer or bearing. Speed capability is moderate — typical grease-lubricated limiting speeds remain adequate for most industrial gearboxes and electric motor applications but should be verified against the specific duty cycle. Without an inner ring, the shaft itself acts as the raceway, meaning thermal expansion of the shaft directly affects the operating clearance. In environments with significant temperature swings, shaft growth can compress the already tight radial internal clearance, potentially leading to roller skidding if the fit was too tight at assembly [NEED_CITE: thermal expansion effects on needle roller bearing clearance].

Interpreting the Core Dimensions

The 25 mm bore diameter (Fw), 35 mm outside diameter, and 17 mm width define a bearing that handles meaningful radial loads despite its compact envelope. Needle rollers distribute load across a longer contact line compared to ball bearings, which reduces contact stress on both the rollers and the shaft raceway. The open design without seals or shields means contamination protection must come from the housing design — either labyrinth seals, felt rings, or external covers. For the bearing steel material, INA maintains consistent through-hardening to achieve the necessary subsurface durability. The single-row configuration keeps the bearing compact while still providing the load density that needle rollers are known for.

What Mis-specification Costs Beyond the Bearing Price

Correct specification and verified provenance protect far more than the bearing itself. An incorrect cage type or counterfeit rollers with substandard heat treatment can trigger cage fatigue, releasing metallic debris that migrates to downstream positions. ISO 15243 classifies these failure modes under material fatigue and wear, both of which accelerate when the needle rollers or cage are not manufactured to the original specification [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. In an automated production line, a single unplanned shutdown for bearing replacement can exceed the cost of dozens of verified bearings. Sourcing through traceable authorized channels eliminates this risk category entirely.

How Our Sourcing Process Supports Your Verification Needs

We source the INA RNAO25X35X17-XL needle roller bearing through authorized distributor channels, which means every unit carries a batch number traceable to INA production records. Our team cross-references not just the base number but also the suffix details — because we have seen ribbed variants shipped where rib-less was required, causing field seizures. For buyers operating in regions with high counterfeit exposure, we provide guidance on QR code verification through the official Schaeffler app and supply country-of-origin documentation for import compliance. When you need to substitute across brands, our interchange comparison checks bore diameter, cage type, and raceway requirements — not just the base designation — so substitutions do not introduce fit or performance gaps.

Documentation & Authenticity

• Supplier Certificate of Conformity listing the RNAO25X35X17-XL designation with batch and lot numbers
• Material certificate confirming bearing steel grade per INA manufacturing standards
• Dimensional inspection report verifying Fw 25 mm, D 35 mm, and B 17 mm tolerances
• Country-of-origin documentation prepared for customs and import clearance
• QR code verification pathway guidance via the official Schaeffler OPTIME or INA app
• HS code classification support for international bearing shipments

Storage, Handling & Mounting

• Retain the factory packaging on this open-type needle roller bearing until the moment of installation; the exposed rollers attract airborne contaminants rapidly once unwrapped
• Store below 60% relative humidity to protect the unsealed bearing steel surfaces from corrosion before assembly
• Clean hands or lint-free gloves are mandatory — fingerprints on the needle rollers introduce acidic residues that initiate pitting under load
• Shaft raceway must be ground to Ra ≤ 0.2 μm and hardened to a minimum of 58 HRC before pressing this inner-ring-free bearing onto the journal
• Use only the recommended grease type and fill quantity for open needle roller bearings, as over-greasing causes churning losses and overheating in this compact 17 mm width

Request Your Technical Quote

Share your application parameters — load spectrum, operating speed, and shaft raceway condition — so we can verify that the INA RNAO25X35X17-XL is the correct fit for your position. If you are replacing an existing bearing, provide the OEM equipment number and we will cross-check dimensions, cage type, and suffix requirements before quoting. Reach out to confirm batch availability, lead time, and the full documentation package for your import requirements.

Frequently Asked Questions

Q: How can I verify that the INA RNAO25X35X17-XL I received is genuine? A: Each bearing carries a batch number that can be traced through INA production records. We guide buyers through the official Schaeffler app QR verification process and supply a Certificate of Conformity with every shipment. Counterfeit units often show cloned QR codes that link to generic pages rather than the brand's authentication system.

Q: What shaft preparation is required since this bearing has no inner ring? A: The shaft journal must serve as the raceway, which requires surface hardness of at least 58 HRC and a ground finish with Ra ≤ 0.2 μm. Without these conditions, the needle rollers will embed into the shaft surface, causing rapid wear and contamination of the lubricant.

Q: Can I cross-reference this needle roller bearing to another brand if INA stock is unavailable? A: Cross-brand interchange is possible but requires matching the Fw 25 mm, D 35 mm, and B 17 mm dimensions along with the rib-less outer ring design and cage type. We verify all three parameters — not just the base number — to prevent the kind of fit errors that cause axial binding or premature cage failure.

Q: What does the XL suffix indicate on this bearing? A: The XL suffix appears on the product label; its exact catalog definition should be confirmed against the current INA technical documentation. We can provide a verification note or consult the manufacturer's catalog on your behalf before shipment.

Q: How should I lubricate this open-type needle roller bearing during installation? A: Since the RNAO25X35X17-XL is delivered without seals or shields, the initial grease fill must be applied during installation according to the housing design and operating speed. Re-lubrication intervals depend on the external sealing arrangement your housing provides.

Start Your INA RNAO25X35X17-XL Inquiry Send us your application details or OEM equipment number to receive a verified quote with full traceability documentation. Contact: sales@bearing-china.com
