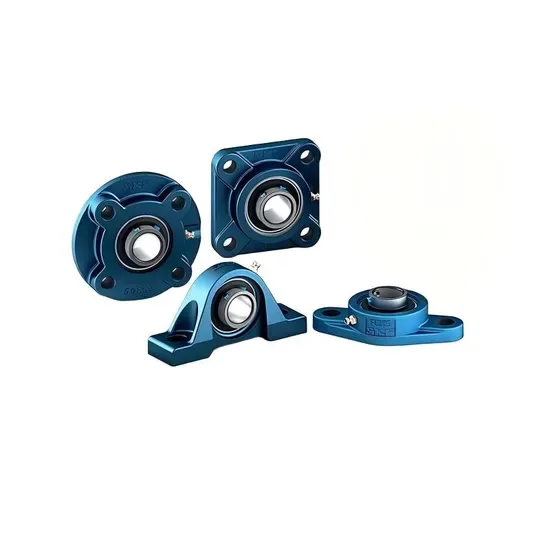

UCF210 Pillow Block Bearing Genuine Wholesale Supplier

Authorized Channel Sourcing — Every UCF210 pillow block unit we dispatch carries batch-level traceability documents from verified distributor networks, ensuring the insert and housing arrive with authenticated origin records.

Technical Specifications

Note: Bearing Block Model F listed by supplier — housing bolt-pattern details should be confirmed against the manufacturer catalog for dimensional interchange.

Application Suitability

When a Square Flange Housing Fails Mid-Season on a Harvest Line

A mismatched seal or overlooked clearance suffix turns a routine replacement into a line-stop emergency during peak harvest windows.

A cassava processing operation in West Africa ran UCF210 pillow blocks on their washing line conveyor. The base number matched, but the replacement units shipped with standard seals instead of high-temperature variants suited to the humid wash-down environment. Within weeks the seals degraded, moisture breached the insert raceway, and corrosion pitting initiated spalling on the inner ring [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. The downtime cost far exceeded the unit price differential. Situations like this surface repeatedly across agricultural and material handling sites where purchasing teams cross-reference only the bore diameter and housing bolt pattern, leaving seal compatibility and corrosion resistance unverified until failure occurs.

Matching the UCF210 Pillow Block Bearing to Conveyor and Harvester Loads

The UCF210 pillow block bearing pairs a single-row insert with a spherical raceway, enabling self-alignment that compensates for shaft deflection and housing mounting errors common in conveyor frames. On agricultural harvesters, header shafts flex under uneven crop loads; the spherical seating surface inside the F housing absorbs angular misalignment without inducing edge loading on the rolling elements. For material handling systems running continuous shifts, this self-aligning capability preserves the L10 fatigue life calculation by keeping load distribution uniform across the ball complement.

Load, Speed, and Wash-Down Exposure in Field Conditions

Conveyor drive pulleys impose steady radial loads with occasional axial components from belt tracking adjustments. In grain handling and food processing, equipment faces periodic high-pressure wash-downs that challenge seal integrity and accelerate corrosion on inadequately protected surfaces [NEED_CITE: bearing corrosion failure mechanisms in wash-down environments]. The corrosion-resistant and high-temperature features specified for this UCF210 pillow block bearing address those exposures, though re-lubrication intervals must account for moisture ingress that degrades grease consistency over time. Shaft speeds on typical conveyor and auger applications remain moderate, keeping friction heat within the grease thermal stability range, but high ambient temperatures in tropical processing plants can compress re-greasing windows.

Decoding the Spherical Raceway and Single-Row Insert Design

The spherical raceway between the insert outer ring and the housing bore is the functional core of this pillow block arrangement. Unlike rigid flange bearings that transfer misalignment directly into internal stresses, the spherical interface allows the insert to pivot within the housing, isolating shaft misalignment from the ball-raceway contact zone. The single-row ball insert carries radial loads efficiently but offers limited axial capacity compared to double-row variants — acceptable for conveyor and agricultural shafts where axial thrust is incidental rather than continuous. The 50 mm bore diameter positions this unit in the mid-range duty segment, balancing load capacity with shaft sizing common in light to medium industrial drives. The F-type square flange housing distributes mounting load across four bolts, providing stable attachment to flat machine frames where space permits bolt access on all sides.

The Downtime Multiplier Behind an Unverified Pillow Block Source

Correct sourcing with documented provenance eliminates the hidden failure cascade that unverified units trigger across connected equipment.

When a counterfeit or substandard insert seizes inside a pillow block housing, the failure rarely stays isolated. Shaft scoring propagates to adjacent couplings, motor windings overheat from locked-rotor current draw, and downstream mechanical components absorb shock loads they were not designed to handle. ISO 281 life calculations assume material quality and dimensional accuracy that counterfeit supply chains cannot guarantee [NEED_CITE: ISO 281 bearing life calculation assumptions on material quality]. A single unplanned shutdown on a continuous-process line can erase an entire quarter's maintenance budget, making the upfront saving on an unverified unit economically irrelevant once the cascading damage is tallied.

How Our Sourcing Process Reduces Procurement Risk

We acquire pillow block units through authorized distributor channels that maintain traceable purchase records, so each shipment carries documentation linking back to the manufacturer's production batch. Our cross-reference database matches not only the base designation but also housing dimensions, seal types, and insert internal clearance — preventing the interchange errors that leave buyers with dimensionally compatible but functionally wrong replacements. When a buyer provides OEM equipment numbers, we cross-check against our interchange library to confirm whether the original specification called for a specific seal variant or corrosion treatment that generic replacements omit. Material certificates and dimensional inspection reports ship with every order, and country-of-origin documentation is prepared to satisfy customs requirements for import-restricted markets [NEED_CITE: customs bearing origin documentation requirements for international trade].

Documentation & Authenticity

• Supplier Certificate of Conformity referencing the UCF210 batch number and production date for traceability audit trails
• Dimensional inspection report verifying housing bore sphericity and insert bore diameter within tolerance before dispatch
• Country-of-origin certificate prepared for import compliance in markets requiring documented manufacturing provenance
• Material test certificates for the insert ring and cage materials, confirming metallurgical specification conformance
• HS code classification documentation included with commercial invoices to accelerate customs clearance at destination ports

Storage, Handling & Mounting

• Retain the factory carton wrapping until the mounting shift begins; early exposure to humid warehouse air initiates surface corrosion on the spherical housing bore before installation
• Mount the four-bolt square flange housing with a torque sequence that draws all bolts progressively, avoiding housing distortion that would compromise the spherical raceway alignment
• Apply grease to the insert through the housing re-lubrication fitting after mounting, purging any preservative compound that was not intended for operational temperatures
• Use a soft-faced mallet or press sleeve on the inner ring only during shaft fitting; driving force on the outer ring transmits through the balls and brinnells the raceway
• For units destined to agricultural equipment operating in dust, inspect the seal lips after the first run-in period and schedule external contamination checks at each seasonal maintenance interval

Requesting a Technical Quotation

Share your operating parameters to initiate the selection review.

Submit the shaft speed, radial load estimates, ambient temperature range, and wash-down frequency so we can verify that the UCF210 pillow block bearing specifications align with your duty cycle. If you are replacing an existing unit, provide the OEM equipment number or the marking on the failed insert and housing — we will cross-reference the seal type, housing bolt spacing, and insert clearance class against our interchange database before issuing the quotation with lead time and minimum order quantity.

Frequently Asked Questions

Q: How can I verify that the UCF210 pillow block unit I received is genuine and not a counterfeit? A: Authentic units carry consistent laser marking on the insert ring with brand-specific fonts and spacing. Where applicable, scan the QR code using the manufacturer's official mobile application — cloned codes often redirect to unofficial domains or display generic batch data that does not match the physical unit. We supply batch traceability documentation with every shipment so you can cross-check the production date and lot number.

Q: What does the UCF210 designation tell me about bore size, housing type, and bolt pattern? A: The "UC" prefix identifies a set-screw locking insert with a wide inner ring. "F" indicates the square flange housing with a four-bolt pattern, and "210" corresponds to a 50 mm bore diameter in the insert series. When cross-referencing across brands, verify the housing bolt spacing and the insert seal type, as these vary between manufacturers even when the base designation matches.

Q: How does the spherical raceway affect performance compared to a rigid flange bearing? A: The spherical interface allows the insert to self-align within the housing, accommodating shaft misalignment caused by frame deflection or imperfect mounting. This prevents edge loading on the rolling elements, which would otherwise accelerate fatigue and shorten the bearing service life in applications like conveyor pulleys where perfect alignment is difficult to maintain in the field.

Q: What lubrication interval is appropriate for UCF pillow block units in dusty or high-temperature environments? A: Lubrication frequency depends on the combination of operating temperature, rotational speed, and contamination exposure. Dusty agricultural environments typically require shorter re-greasing intervals to purge ingressed particulates, while high-temperature processing plants must account for accelerated grease oxidation. Consult the manufacturer's re-lubrication chart for the specific insert series, and adjust based on observed grease condition at inspection intervals.

Initiate Your UCF210 Procurement Review

Send us your equipment specifications or the OEM part number from your existing pillow block, and our technical team will return a cross-referenced quotation with full documentation scope and confirmed lead time.
