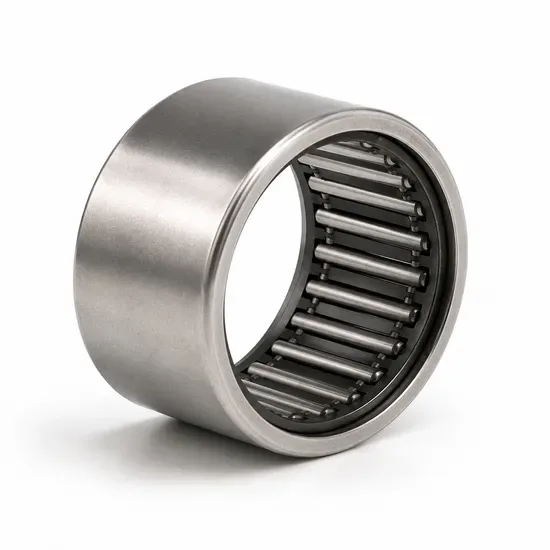

INA HK0912 Drawn Cup Needle Bearing P6 Precision Wholesale Supplier

Authorized Channel Sourcing — Every INA HK0912 unit ships with distributor-origin documentation traceable back to the manufacturer's production facilities.

Technical Specifications

Application Suitability

What Happens When Counterfeit Drawn Cups Reach a Transmission Assembly

A soft-ringed needle bearing fails before the first scheduled oil change.

We once traced a batch of returned needle rollers back to a middleman who had relabeled aftermarket cups with convincing markings. The base dimensions matched perfectly, but the inner ring hardness was nowhere near specification. Under cyclic radial load at sustained RPM, the needles wore grooves into the shaft surface within weeks. Counterfeit needle roller bearings are increasingly difficult to separate from genuine INA HK0912 drawn cup needle roller bearing units through visual inspection alone. Cloned laser markings, replicated packaging, and soft inner rings that pass a casual file test create exposure across the entire supply chain. [NEED_CITE: counterfeit bearing infiltration in industrial supply chains]

Matching the HK0912 to High-Cycle Transmission Environments

Transmission idler gears and planetary carriers demand a bearing with minimal cross-section and maximum radial load density. The INA HK0912 drawn cup needle roller bearing fills that envelope with a 9 mm bore and 13 mm outer diameter, delivering full-complement needle coverage in a package thin enough to fit inside compact gear housings. When we match this designation for gearbox rebuilds, we cross-check the needle count and complement density against the application's radial load profile — a step most catalog lookups skip entirely. That verification prevents the exact cage-cracking failures I witnessed early on in a textile machinery transmission line where a thinner needle set was installed without anyone catching the density mismatch.

Load Spectrum and Speed Constraints in Compact Gear Stages

Drawn cup needle bearings operate without an inner ring, meaning the shaft itself becomes the raceway. Surface hardness, roundness, and finish of the mating shaft directly dictate fatigue life. In transmission applications where radial loads fluctuate with each gear engagement, the full-complement design of the HK0912 handles peak loads better than caged variants but sacrifices some speed capability. Lubrication path design matters here: open ends allow oil mist or splash lubrication to flow through the needle complement, but they also leave the bearing exposed to particulate ingress if housing seals are inadequate. Thermal expansion at sustained operating temperatures can close the already-tight radial clearance, so shaft tolerance must account for the thermal growth of both the housing bore and the shaft diameter. [NEED_CITE: drawn cup needle bearing shaft hardness requirements per ISO 3245]

Decoding the HK Prefix and Dimension Series

The HK prefix designates a drawn cup needle roller bearing with open ends, manufactured by deep-drawing a thin steel shell that serves as the outer ring. This process produces a lightweight, compact bearing with high radial stiffness relative to its envelope. The 0912 dimension series breaks down to a 9 mm bore, 13 mm outside diameter, and 12 mm width. P6 precision ensures tighter dimensional tolerances than standard grade, which matters when the bearing seats directly into a thin-walled aluminum or cast-iron housing bore — any deviation from nominal outside diameter creates uneven contact pressure around the cup circumference. The full-complement arrangement means no cage separates the needles, so needle-to-needle contact generates slightly more friction but maximizes load-carrying capacity in the smallest possible cross-section.

The Downtime Cost of an Undetected Sourcing Error

A single batch of counterfeit or mis-specified needle bearings installed across a fleet of gearboxes does not fail all at once. Failures surface randomly over weeks or months, triggering unplanned teardowns, warranty disputes, and replacement logistics that dwarf the original purchase savings. ISO 15243 classifies these failure modes — surface fatigue, wear, and plastic deformation — and most can be traced back to material hardness deficiencies or dimensional deviations in the drawn cup shell. Correct sourcing with verified documentation eliminates this exposure entirely, whereas a price-driven procurement decision introduces latent risk into every assembly that receives the affected batch. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

How We Verify Before We Ship

Our sourcing model relies on authorized distributor channels rather than open-market procurement. For each INA HK0912 drawn cup needle roller bearing order, we pull batch-level traceability documentation that links back to the manufacturer's production lot. Cross-reference matching extends beyond the base number: we verify needle complement density, cup wall thickness consistency, and open-end geometry against the target application's requirements. When a buyer needs to substitute an equivalent from another brand, we align clearance class, precision grade, and needle count simultaneously — not just the bore and outside diameter. Origin documentation accompanies every shipment so import compliance is settled before the goods reach the destination port.

Documentation & Authenticity

• Supplier Certificate of Conformity linking each shipment batch to the original INA production lot number
• QR code verification pathway through the official INA app, allowing receiving inspectors to confirm authenticity on the dock
• Dimensional inspection report verifying bore, outside diameter, and width against ISO 3245 tolerances before dispatch
• Country-of-origin certificate formatted for customs clearance in Middle East, African, Latin American, and Central Asian import jurisdictions
• HS code guidance and import documentation support for buyers managing multi-country compliance requirements

Storage, Handling & Mounting

• Keep HK0912 bearings in their original plastic tube packaging until the moment of pressing — drawn cup shells dent easily if handled loose in a bin
• Store sealed tubes horizontally in a climate-controlled area; the open-end design means any humidity ingress reaches the needle surfaces directly
• Use clean gloves during mounting to prevent fingerprint corrosion on the exposed needle complement before lubrication is applied
• Press-fit the outer cup into the housing bore using a flat mandrel that contacts the full cup face — never drive on the open end edge, which will collapse the drawn shell
• Verify shaft surface hardness and roughness before installation, since the HK0912 runs directly on the shaft with no separate inner ring
• Apply initial lubrication immediately after pressing; the full-complement needle arrangement has no cage to retain grease, so oil or grease must flood the entire needle path

Request a Technical Review for Your Application

Share your transmission load parameters, shaft surface specifications, and operating speed so we can confirm whether the INA HK0912 drawn cup needle roller bearing meets your fatigue life requirements. If you are working from an OEM equipment number, provide it along with the existing bearing marking so we can run a full cross-reference verification including needle complement density. We will return a quotation with lead time, batch availability, and the complete documentation package for your import and receiving inspection process.

Frequently Asked Questions

Q: How can I confirm that an INA HK0912 bearing is genuine using the official app? A: INA provides a QR code verification pathway through their official mobile application. Scan the code on the product packaging or label to retrieve batch traceability data linked to the manufacturer's production records. We supply QR-verified units with matching batch documentation so your receiving team can complete this check independently.

Q: What does the HK prefix indicate in drawn cup needle bearing designations? A: HK denotes a drawn cup needle roller bearing with open ends. The cup is formed by deep-drawing a thin steel shell, creating a lightweight outer ring. The absence of suffix letters after the dimension series means this is the standard open-end configuration without seals or additional modifications.

Q: How do you match clearance and precision when cross-referencing needle roller bearings? A: A valid cross-reference must align bore diameter, outside diameter, width, precision class, and needle complement density simultaneously. Matching only the base dimension numbers while ignoring internal geometry leads to load capacity mismatches. We verify all five parameters before confirming an interchange.

Q: What mounting precautions apply to open-end drawn cup needle bearings? A: The drawn cup shell is thin-walled and deforms under uneven pressing force. Always use a mandrel that contacts the full closed-end face. The shaft must meet specified surface hardness and finish requirements because it serves directly as the inner raceway. Open ends require housing seals to prevent contaminant ingress during operation.

Q: How do counterfeit needle roller bearings typically evade visual inspection? A: Counterfeiters replicate laser markings, packaging, and outer dimensions accurately. The deficiencies appear in material hardness and needle complement density — neither of which is visible without testing. Soft inner rings and thinner needle sets fail prematurely under load, often after passing initial receiving inspection.

Confirm Your HK0912 Batch Availability Send your application parameters or OEM equipment number to initiate a technical review and receive a fully documented quotation. Contact our engineering team through your existing account channel or request a new consultation via the inquiry form on our company portal.
