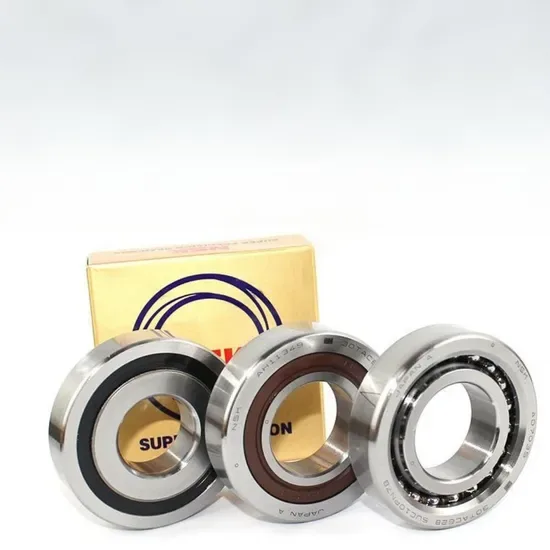

NSK 7900A5TRSUELP3 Angular Contact Ball Bearing P3 Japan

Sourced from authorized distributor channels — every NSK 7900A5TRSUELP3 bearing ships with batch-level documentation traceable back to the manufacturer's production facilities in Japan.

Technical Specifications

Certain suffix segments in this designation (A5, TR, S, UE) are not fully decoded in open reference materials and should be confirmed against the current NSK precision catalog before final procurement.

Application Suitability

What Happens When a 15° Contact Angle Bearing Lands in a 25° Slot

NSK 7900A5TRSUELP3 angular contact ball bearing precision must match the spindle envelope — a base-number match is never enough.

A machining shop in the Middle East once replaced a spindle bearing with an angular contact unit that matched the bore, OD, and width perfectly. What they missed was the contact angle and precision suffix. The substitute ran hotter within the first shift, and by week two the spindle housing showed thermal distortion. The repair cost — new housing bore, fresh bearing set, and four days of lost production — dwarfed the original bearing invoice. This is a pattern we see across regions where procurement teams match the base designation but skip the suffix chain [NEED_CITE: angular contact bearing substitution errors in spindle rebuilds].

Matching the 7900 Series to High-Speed Spindle Demands

The NSK 7900A5TRSUELP3 angular contact ball bearing is engineered for applications where rotational speed is high, radial loads dominate, and axial thrust is moderate. The 15° contact angle produces a smaller contact ellipse under load compared to 25° or 40° variants, which directly reduces friction heat generation at sustained rpm. In spindle rebuilds, this matters: less internal heat means the outer ring stays closer to housing temperature, and thermal expansion does not eat into the radial internal clearance the way it would with a steeper angle. We once supplied a matched set for a CNC milling spindle where the original OEM specification called for a 15° angle at P3 precision — swapping to a P4 equivalent without verifying preload pairing would have shifted the stiffness balance and introduced chatter marks on the workpiece.

Spindle Load, Speed, and Thermal Balance

Spindle applications impose a specific load profile: continuous radial load from cutting forces, intermittent axial thrust from tool engagement, and rotational speeds that push grease to its thermal limits. At these speeds, lubricant film thickness shrinks and cage centrifugal forces rise. The bearing must dissipate heat through the outer ring into the housing, which means the fit between outer ring and housing bore has to be tight enough for heat transfer but not so tight that it crushes residual clearance. Temperature differentials of several degrees between shaft and housing are common during warm-up cycles, and a standard CN clearance can close completely if the thermal gradient is not accounted for during selection [NEED_CITE: thermal expansion effects on bearing internal clearance in high-speed spindles]. Lubrication intervals must match the grease fill ratio specified for the suffix configuration — over-greasing a high-speed angular contact bearing causes churning losses that raise operating temperature faster than under-lubrication does.

Reading the Suffix Chain Beyond the Base Number

The P3 precision class places this bearing above the standard P0 and P6 grades in dimensional and running accuracy, approaching the tolerance band of P4 without carrying the P4 price premium. For spindles that do not demand ultra-precision grinding tolerances but still require low runout, P3 is a practical selection. The 15° contact angle — decoded from the A5 suffix position in NSK's nomenclature — is the standard choice for high-speed, low-axial-load applications, and it pairs well with the 7900 series' relatively slim cross-section. The TR, S, and UE suffix segments point to cage material, seal configuration, and arrangement specifics that must be read together; changing any one of them alters the speed limit, grease fill, or preload state. This is where cross-reference errors happen most often: a buyer finds an interchangeable base number from another brand but misses that the cage is polyamide instead of phenolic resin, or the arrangement is universal flush-ground rather than paired preload.

The Price Tag Behind a Wrong Suffix

Selecting a bearing that matches the bore and OD but ignores precision class or contact angle rarely fails immediately. It fails after warm-up, after the first heavy cut, or after a month of night-shift operation when no one is watching the temperature readout. The cost is not the replacement bearing — it is the unplanned downtime, the scrapped workpieces with chatter marks, and the loss of spindle preload consistency that forces a complete teardown and re-grind of the housing seat. ISO 15243 classifies these failures under fatigue and wear patterns that trace back to improper internal clearance or misapplied precision grades, not to material defects [NEED_CITE: bearing failure mode classification per ISO 15243]. Counterfeit bearings compound the problem: soft inner rings and cloned QR codes pass visual inspection, but their raceway geometry cannot hold the running accuracy that a P3 class demands.

How We Source and Verify This Bearing

Every NSK 7900A5TRSUELP3 angular contact ball bearing we supply is procured through authorized distributor channels, not parallel importers or unverified trading desks. We provide batch-level traceability documents that tie the physical unit to the manufacturer's production lot. When a cross-reference request comes in — whether from SKF, FAG, or TIMKEN catalogs — we match clearance class, cage material, and precision suffix together, never just the base number. Our technical team reviews the application parameters before confirming the selection, checking speed limits against the specific cage and seal configuration. Country-of-origin documentation from Japan is included for customs compliance, and we support QR code verification through NSK's official application for buyers who want independent confirmation.

Documentation & Authenticity

• Supplier Certificate of Conformity tied to the specific batch and lot number of the NSK 7900A5TRSUELP3 shipment
• Country-of-origin certificate issued in Japan, supporting import documentation and customs classification
• Dimensional inspection report confirming P3 running accuracy and boundary dimensions per ISO 492 before dispatch
• QR code verification pathway via NSK official app for independent authenticity check upon receipt
• Material certificate documenting bearing steel grade and heat treatment compliance

Storage, Handling & Mounting

• Keep the P3 precision bearing in its original sealed packaging until the moment of mounting to prevent contamination of the raceway surfaces
• Store in a climate-controlled environment with stable temperature to avoid condensation inside the packaging, which is critical for the 15° contact angle raceway geometry
• Handle with lint-free gloves to avoid transferring skin oils onto the precision-ground surfaces, which can affect initial lubrication performance
• If this bearing is part of a matched preload set, do not separate the units or remove the pairing marks until both are ready for simultaneous installation
• Mount using controlled induction heating for the inner ring only, monitoring temperature to stay within limits that preserve the P3 dimensional tolerance

Request a Technical Review Before Ordering

Share your spindle speed range, typical cutting loads, and housing bore tolerance so we can confirm whether the P3 class and 15° contact angle configuration align with your application. If you have the OEM equipment number or the original bearing suffix string, send it over for a full cross-reference check that covers clearance, cage, and arrangement. We will return a sourcing confirmation with batch availability, lead time, and the documentation package your import process requires.

Frequently Asked Questions

Q: How can I verify the authenticity of the NSK 7900A5TRSUELP3 angular contact ball bearing I receive? A: Each bearing shipped through our authorized channels carries a traceable batch number. You can scan the QR code on the packaging using NSK's official mobile application to confirm the production lot. We also supply a Certificate of Conformity and support third-party pre-shipment inspection if your procurement policy requires it.

Q: What is the difference between P3 and P4 precision class in angular contact bearings? A: Both P3 and P4 exceed the standard P0 and P6 tolerance bands defined in ISO 492. P4 specifies tighter limits on bore diameter, outside diameter, width, and running accuracy than P3. For spindle applications, the choice depends on the required runout at the tool tip — some high-speed spindles perform well at P3, while ultra-precision grinding spindles demand P4 or higher.

Q: Why does cross-referencing require more than matching the base bearing number? A: The base number identifies the bore, OD, and width, but it says nothing about contact angle, clearance class, cage material, or precision grade. A bearing with the same base designation but a 25° contact angle and polyamide cage will behave differently under the same spindle load and speed. Our cross-reference process checks all three dimensions — clearance, cage, and precision — before confirming interchangeability.

Q: What do the NSK suffixes on this bearing indicate? A: The suffix chain on the 7900A5TRSUELP3 encodes the contact angle, cage type, seal or shield arrangement, preload configuration, and precision class. The A5 segment relates to the 15° contact angle, and LP3 confirms P3 precision. Other suffix segments reference internal design features that should be verified against the current NSK precision catalog for the specific application context.

Q: How often should high-speed spindle bearings be re-lubricated? A: Re-lubrication intervals depend on the spindle speed, operating temperature, and grease type specified for the bearing configuration. Over-greasing causes churning heat that degrades the lubricant faster than normal wear. We recommend following the machine tool builder's maintenance schedule and adjusting intervals based on monitored temperature trends at the spindle housing.

Confirm Your Spindle Bearing Requirements Send us the OEM part number, operating speed range, and any existing suffix string for a full technical cross-reference and sourcing quote. [Contact our engineering team for application review and batch availability]
