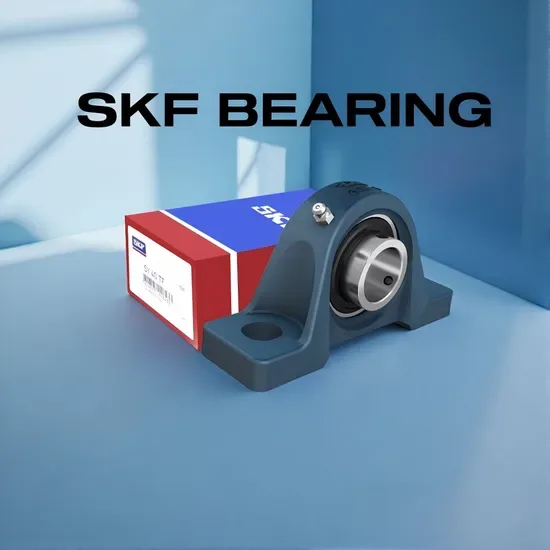

UCP310 Pillow Block Unit Bearing for SKF Genuine Supply

Traceable Supply Chain — Every UCP310 pillow block unit ships with a Certificate of Conformity linked to batch-level documentation, enabling buyers to verify origin and material specs before the unit ever reaches the mounting bracket.

Technical Specifications

The "F" suffix designation for this housing block requires confirmation against the manufacturer catalog for dimensional interchange; confirm housing bolt pattern before ordering.

Application Suitability

What Happens When Pillow Block Specs Get Swapped Under the Same Part Number

A single mismatch between seal type, clearance class, or housing fit can turn a replacement into a repeat failure.

I flew to a grain facility in northern Nigeria twice before we figured out what was happening. The conveyor kept seizing every few weeks, and every time the maintenance crew pulled the unit, the inner ring was spun and the grease had cooked into a hard carbon residue. The previous supplier had quoted the right base number but substituted a UCP310 pillow block unit bearing with standard CN clearance and non-contact shields. In 45°C ambient heat with fine grain dust everywhere, the standard clearance left no room for thermal expansion, and the shields let dust straight into the raceway. The unit failed in under three weeks each time. That kind of substitution error is not rare — it accounts for a significant share of premature bearing failures across conveyor and agricultural installations in hot, dusty climates. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

Matching the UCP310 to Real Field Conditions

The UCP310 pillow block unit bearing performs well in environments where shaft misalignment is expected and where the housing must absorb moderate shock loads from belt tension changes or uneven material flow. Its single-row spherical raceway allows the inner ring to pivot slightly within the housing, compensating for mounting bracket deflection or shaft runout that would otherwise edge-load a rigid bearing. For conveyor systems operating in high-humidity or chemical-exposure zones, the corrosion-resistant features of this unit extend service intervals noticeably compared to unprotected cast iron housings. When we source this model for customers running agricultural equipment, we cross-check not just the base number but confirm the seal variant and clearance class match the actual operating temperature and contamination level — because a grain elevator in sub-Saharan heat demands different internal specs than a textile line in a climate-controlled plant.

The Heat, Dust, and Load Profile That Kills Pillow Blocks

Radial loads on conveyor idler shafts are mostly steady, but belt start-stop cycles introduce shock pulses that the housing and insert bearing must absorb repeatedly. Ambient temperatures in outdoor material handling or agricultural applications can push operating envelope limits — thermal expansion of the shaft and inner ring tightens internal clearance, and if the unit started at standard CN, you may end up with negative clearance under load, which accelerates cage wear and grease breakdown. [NEED_CITE: thermal expansion effects on bearing internal clearance in high-temperature service] Contamination is the other persistent enemy: fine particulate ingress past inadequate seals abrades the raceway and degrades the grease, turning what should be a multi-year service interval into a monthly replacement cycle. Mounting method matters here as well — a cylindrical bore insert pressed with excessive force or misaligned in the housing will preload the bearing before it ever sees operating load, cutting calculated L10 life substantially.

Reading the Specs That Actually Matter

The spherical raceway geometry is the defining feature of this unit: it permits angular misalignment between shaft and housing, which is critical when conveyor frames deflect under load or when mounting surfaces are not machined perfectly flat. Single-row construction keeps the axial envelope compact, making the UCP310 suitable for applications where shaft-end space is limited. The corrosion-resistant treatment on the housing and insert bearing surfaces addresses the reality that many conveyor and agricultural installations cannot guarantee dry environments — moisture from washdown, rain exposure, or process humidity attacks untreated surfaces rapidly. High-temperature capability means the grease fill and seal elastomers are rated to sustain performance at elevated operating temperatures without premature hardening or extrusion, which is exactly what failed on that Nigerian conveyor line. High-speed design features — including cage geometry and rolling element grade — allow the unit to handle the RPM ranges typical of belt-driven transfer systems without cage resonance or lubricant starvation.

What a Wrong UCP310 Substitution Actually Costs

Correct sourcing with verified clearance, seal type, and housing dimensions delivers predictable L10 life aligned with ISO 281 calculations. A counterfeit or spec-swapped unit fails unpredictably — often within weeks rather than years — and the real expense is never the bearing itself. [NEED_CITE: unplanned downtime cost calculation for industrial conveyor systems] It is the conveyor shutdown during peak harvest, the idle crew waiting for a replacement, the secondary damage to shafts and seals when an inner ring spins and scores the journal, and the warranty disputes that follow when equipment OEMs refuse claims linked to unverified replacement parts. A significant share of premature failures in pillow block applications traces back to clearance mismatch, seal substitution, or counterfeit metallurgy rather than design inadequacy.

How We Source Differently for This Unit

We procure the UCP310 pillow block unit bearing through authorized distributor channels with full batch-level traceability, so the Certificate of Conformity you receive ties back to a specific production lot. Our cross-reference process goes beyond matching the base designation — we verify housing bolt patterns, insert bearing clearance class, seal configuration, and cage material against your actual application parameters before quoting. When a buyer sends us an OEM equipment number, we cross-check the original specification to confirm whether the factory installed a C3 clearance unit or a specific seal variant, then match that exactly. Every shipment includes material certificates and dimensional inspection documentation, and where brand official apps support QR verification, we provide the pathway so your receiving team can confirm authenticity on the dock. For import buyers, we prepare country-of-origin documentation and HS code details to smooth customs clearance.

Documentation & Authenticity

• Supplier Certificate of Conformity with batch and lot traceability tied to each UCP310 unit shipped
• Material certificate confirming bearing steel grade for the insert bearing inner and outer rings
• Dimensional inspection report verifying housing bore tolerance and bolt pattern dimensions
• Country-of-origin documentation prepared for import compliance at destination
• QR code verification pathway via brand official apps where supported by the manufacturer
• HS code and customs documentation package included with every export shipment

Storage, Handling & Mounting

• Keep each UCP310 unit sealed in its original export packing until the day of installation; opening early in a humid or dusty storeroom compromises the factory grease fill
• Store cartons on pallets in a covered area with stable temperature; thermal cycling in outdoor laydown yards causes condensation inside the housing bore
• Use clean gloves when handling the spherical raceway insert; fingerprints on the outer ring surface promote corrosion under the housing fit
• Mount the cylindrical bore insert using an induction heater set to the manufacturer-recommended temperature; pressing cold risks brinelling the raceway and deforming the cage
• Confirm the housing mounting surface is flat and clean before bolting; uneven seating distorts the spherical raceway and negates the self-aligning capability of this unit
• For high-dust conveyor applications, inspect external housing seals at each re-lubrication interval — the corrosion-resistant housing protects the exterior, but contamination entering past the insert seal is the primary wear driver

Request a Quotation for Your Application

Share Your Operating Parameters and We Will Match the Exact Specification

Send us your shaft speed, ambient temperature range, load profile, and contamination level for a technical review and cross-reference confirmation on the UCP310 pillow block unit bearing. If you are replacing an OEM-installed unit, provide the equipment serial number and we will verify the original clearance and seal specification before quoting.

Frequently Asked Questions

Q: How can I verify the authenticity of a UCP310 pillow block unit before installation? A: Request the batch-level Certificate of Conformity and cross-reference the lot number with the manufacturer. Where supported, use the brand's official QR verification app to scan the unit packaging. Inspect the inner ring hardness — counterfeit units frequently use soft inner rings that score under a file, whereas genuine bearing steel resists abrasion.

Q: What cross-reference details matter beyond the base UCP310 designation? A: Housing bolt pattern dimensions, insert bearing clearance class, seal type (contact vs non-contact), and cage material all affect interchange compatibility. Matching only the base number while overlooking these parameters leads to field failures, especially in high-temperature or high-contamination environments.

Q: What clearance class should I specify for high-temperature conveyor applications? A: Elevated operating temperatures cause thermal expansion of the shaft and inner ring, which reduces internal clearance. Applications running in hot ambient conditions or generating significant friction heat typically require C3 or higher clearance rather than standard CN. Share your operating temperature range for a specific recommendation.

Q: What are the lubrication and re-lubrication requirements for this spherical raceway unit? A: The factory grease fill is selected for the specified temperature and speed range. Re-lubrication intervals depend on operating temperature, contamination level, and duty cycle. In dusty conveyor environments, shorter re-greasing intervals with compatible grease help purge contamination from the seal lip area.

Q: What lead times and minimum order quantities apply to bulk orders? A: Lead times depend on current stock availability at authorized distributor channels and the specific suffix configuration required. MOQ varies by order value and shipping method. Contact us with your quantity and destination port for a specific timeline and quotation.

Get a Technical Review Before You Order

Submit your application parameters or OEM equipment number, and our team will confirm the correct UCP310 pillow block unit bearing configuration — including clearance, seal type, and housing dimensions — before issuing a quotation with full documentation.
