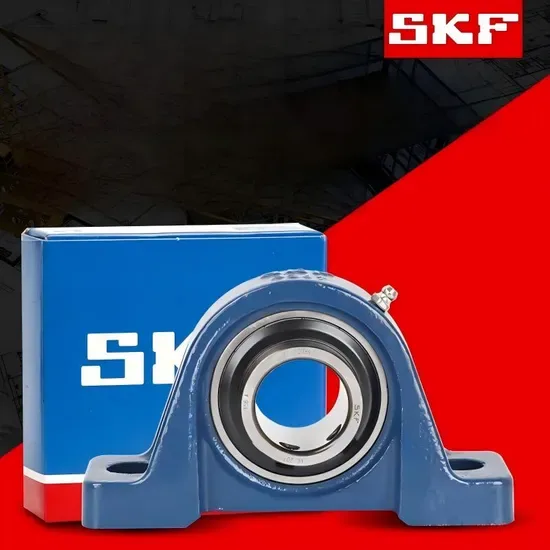

SKF UCP203 Pillow Block Bearing Genuine Wholesale Supplier

Authorized channel sourcing — Every SKF UCP203 unit ships with batch-level traceability documentation linked to verified distributor records.

Technical Specifications

The "F" bearing block model suffix is unverified and should be confirmed against the manufacturer catalog before final specification lock-in.

Application Suitability

What Happens When a Pillow Block Inner Ring Goes Soft

Counterfeit UCP units fail at the set screw interface long before the rolling elements fatigue.

I pulled a failed unit off a palm oil conveyor in Sumatra once — the outer shell looked fine, the SKF branding was crisp, and the QR code scanned. But when we sectioned the inner ring, case hardness barely registered HRC 58. The set screws chewed through the soft race within weeks, the inner ring spun on the shaft, and the entire line stalled. That failure mode does not show up in a visual inspection or a spin test. It only appears under sustained radial load at operating temperature, which is exactly when you cannot afford a shutdown. The SKF UCP203 pillow block bearing sourced through unverified traders carries this exact hidden risk [NEED_CITE: counterfeit bearing detection methods per ISO 15243 failure classification].

Matching the UCP203 to Conveyor and Agricultural Loads

The spherical raceway in the SKF UCP203 pillow block bearing allows the inner ring to self-align within the housing, absorbing shaft deflection and housing misalignment that routinely occur on field-installed conveyor frames. Single-row construction keeps the radial load path direct and predictable, which matters when a grain elevator sprocket shaft sees cyclic shock loads every time a bucket engages. We cross-check application parameters — load magnitude, speed, ambient temperature, moisture exposure — against the manufacturer's published limits before confirming suitability, rather than shipping by part number alone.

Load, Speed, and Contamination at the Mounting Point

Pillow block units at conveyor transfer points face combined radial and light axial loading, with shock spikes when material drops onto the belt. Speed tends to stay moderate, but contamination is relentless — dust, moisture, and washdown water all attack the seal interface. Temperature swings between day and night shift the shaft diameter slightly, and if the internal clearance cannot absorb that thermal expansion, the bearing runs preload-hot and the grease degrades ahead of schedule. The SKF UCP203 addresses this with corrosion-resistant features and a seal arrangement designed to keep contaminants out while retaining factory-charged lubricant [NEED_CITE: pillow block bearing seal performance in contaminated environments].

Spherical Raceway and Single-Row Geometry Explained

The spherical outer surface of the insert bearing mates with a matching concave seat in the cast iron housing, permitting angular misalignment without edge-loading the balls. This self-aligning capability is critical on welded steel conveyor frames where housing bore parallelism is never perfect. Single-row ball construction provides a well-defined radial load path and keeps friction torque low at moderate speeds. The corrosion-resistant and high-temperature design features extend the service envelope beyond standard catalog ratings, supporting applications where ambient heat or moisture would degrade a plain-carbon-steel housing. High-speed capability depends on the seal contact pressure and grease fill — factors that shift with actual operating conditions rather than nameplate speed alone.

The Hidden Cost of a Soft Inner Ring on a UCP Series Unit

A genuine SKF UCP203 pillow block bearing from an authorized distributor channel carries consistent metallurgy and documented heat treatment. A counterfeit or substitution unit may dimensionally interchange but fails at the set screw contact zone under sustained load — leading to shaft fretting, unplanned downtime, and collateral damage to seals and couplings. Under ISO 281 life calculation frameworks, the rating assumes verified material quality; unknown metallurgy invalidates the entire L10 estimate. Premature inner ring failure also voids warranty coverage on downstream equipment, turning a low-cost component into a high-cost production loss [NEED_CITE: bearing life calculation assumptions per ISO 281].

How We Source and Verify UCP Series Pillow Blocks

Every SKF UCP203 we supply moves through authorized distributor channels with traceable documentation back to the manufacturer's production batch. We do not hold a single-brand distributorship — we source across six major brands through verified channels and provide cross-reference comparison that matches clearance class, cage material, and precision suffix, not just the base model number. For buyers in regions where counterfeit exposure is high, we include QR code verification pathways via the official SKF app so authenticity can be confirmed on arrival. Country-of-origin documentation ships with every order to support import compliance, and our technical team reviews application parameters before confirming suitability rather than after a field failure.

Documentation & Authenticity

• Supplier Certificate of Conformity with batch and lot numbers traceable to the SKF production run for this specific UCP203 shipment
• QR code verification pathway via the official SKF app, enabling receiving inspectors to confirm authenticity before the unit leaves the dock
• Country-of-origin certificate supporting customs clearance and import compliance documentation in destination markets
• Material and dimensional inspection reports available on request, confirming inner ring hardness and housing bore tolerances match published specifications
• HS code and import support documentation included with the shipping package to reduce clearance delays

Storage, Handling & Mounting

• Keep the SKF UCP203 in its original sealed carton until the mounting shift — early exposure to warehouse humidity compromises the factory grease fill inside the spherical raceway insert
• Store on wooden pallets away from direct sunlight and temperature extremes that can degrade the corrosion-resistant surface treatment on the housing
• Use clean gloves when handling the unit to avoid transferring skin oils onto the machined shaft-contact surfaces of the inner ring bore
• Mount using Class 8.8 bolts with washers per manufacturer guidance, ensuring the spherical seat is clean so self-alignment functions correctly under load
• Do not attempt to re-lubricate before initial installation — the factory grease charge is matched to the seal friction and speed envelope of the single-row ball construction

Request a Technical Review Before You Order

Share your operating parameters — shaft speed, radial load, ambient temperature range, and contamination level — so we can confirm the SKF UCP203 pillow block bearing is the correct fit or recommend a cross-brand alternative with matched clearance and seal specification. If you are replacing an existing unit by OEM equipment number, send us the nameplate data and we will verify the interchange across SKF, NSK, NTN, FAG, TIMKEN, and KOYO catalogs, checking suffixes that generic cross-reference tables miss.

Frequently Asked Questions

Q: How do I verify that the SKF UCP203 I received is genuine? A: Scan the product QR code using the official SKF app to confirm batch authenticity against manufacturer records. Request the Certificate of Conformity and batch traceability documentation from your supplier before accepting delivery.

Q: What should I check when cross-referencing the UCP203 to another brand? A: Beyond the base designation, verify that the replacement unit matches the internal clearance class, seal type, and housing material. A mismatch in any of these parameters leads to thermal binding or premature seal failure even when the outer dimensions interchange.

Q: How do I select the right pillow block for my conveyor application? A: Confirm the shaft diameter, expected radial and axial loads, operating speed, and environmental contamination level. These parameters determine whether the standard UCP203 clearance and seal arrangement are sufficient or whether a modified internal clearance or upgraded seal is needed.

Q: What is the recommended re-lubrication interval for the UCP203? A: Re-lubrication frequency depends on operating speed, load, temperature, and contamination exposure. Under moderate conditions the factory grease charge provides extended service, but high-contamination or high-temperature environments require shorter intervals — consult the application-specific relubrication guide or contact our technical team for a recommendation.

Q: What does the "F" suffix on this pillow block model indicate? A: This suffix requires confirmation against the current manufacturer catalog as its specific meaning can vary across production periods. We verify the exact designation meaning before shipment and include the clarification in your documentation package.

Confirm Your SKF UCP203 Specification and Lead Time Send us your shaft dimensions, load data, and OEM equipment number — we will return a verified interchange recommendation with documentation package details and batch availability within one business day.
